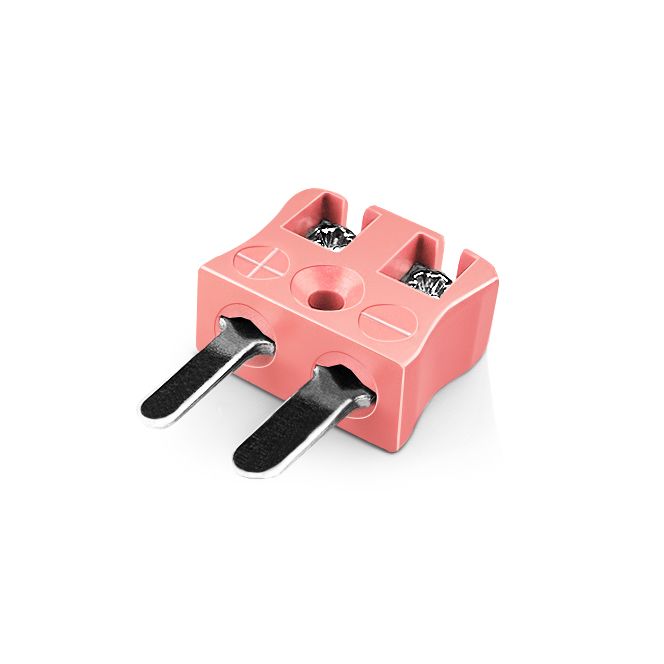

Miniature Quick Wire Connector Thermocouple Plug IM-N-MQ Type N IEC

Miniature Quick Wire Connector Thermocouple Plug IM-N-MQ Type N IEC

Details

Miniature Thermocouple Connector Quick Wire Plug IM-N-MQ Type N IEC

Miniature connector with flat plug pins. Easy jab-in connection for rapid termination. Just push-in wire & tighten screw.

*** See specifications tab for full details ***

General Description Easy jab-in connection for rapid termination.
Thermocouple Type N IEC
Connector Type Quick Wire Plug
Connector Size Miniature
Colour Pink
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
Pins Flat Pins
+Positive Contact Nickel / Chromium / Silicon
-Negative Contact Nickel Silicon
Standards Met BS EN 50212:1997. RoHS
Data Sheet & Schematic - IM-N-MQ Data Sheet & Schematic - IM-N-MQ
Frequently Asked Questions Frequently Asked Questions
Colour Chart - Thermocouple Cable Colour Chart - Thermocouple Cable
Brochure - Connectors Brochure - Connectors
Product Focus - Connectors brochure Product Focus - Connectors brochure
Wall Chart Wall Chart
Colour Chart - Connectors Colour Chart - Connectors
GBP EUR USD JPY
Excl. VAT: £2.62 Incl. VAT: £3.14
  • Buy 2+ for £2.01 (£2.41 incl. VAT) each
  • Buy 10+ for £1.75 (£2.10 incl. VAT) each
  • Buy 50+ for £1.55 (£1.85 incl. VAT) each
Labfacility Part No:
XE-1261-001
Lead Time:
In-Stock
Tariff Code:
90330000
Product Code
IM-T-MQ
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
RoHS
