Miniature Quick Wire Connector Thermocouple Plug IM-R/S-MQ Type R/S IEC

Change Currency

SKU
XE-1301-001
£3.20 £2.67
  • Buy 2 - 9 for  £2.21 £1.84 each
  • Buy 10 - 99 for  £1.87 £1.56 each
  • Buy 100+ for  £1.76 £1.47 each
Lead Time:
In-Stock
Weight:
4g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

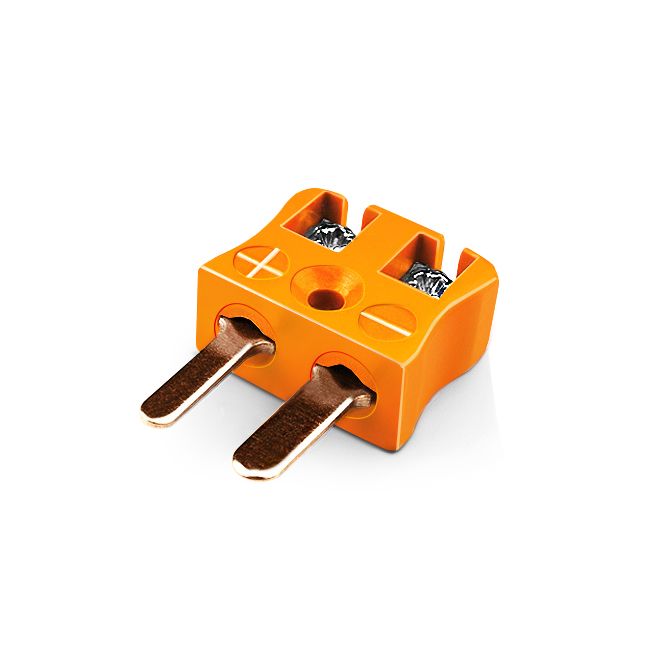

Miniature Thermocouple Connector Quick Wire Plug IM-R/S-MQ Type R/S IEC

Miniature connector with flat plug pins. Easy jab-in connection for rapid termination. Just push-in wire & tighten screw.

Specifications

General DescriptionEasy jab-in connection for rapid termination.
Thermocouple TypeR/S IEC
Connector TypeQuick Wire Plug
Connector SizeMiniature
ColourOrange
Max. Temperature220°C
PinsFlat Pins
+Positive ContactCopper
-Negative ContactCopper Alloy
Standards MetBS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Quick Wire Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
