Miniature Thermocouple Connector Plug JM-J-M Type J JIS
Change Currency
SKU
XE-9170-001
£3.74
£3.12
- Buy 2 - 9 for £2.93 £2.44 each and save 22%
- Buy 10 - 99 for £2.50 £2.08 each and save 33%
- Buy 100+ for £2.34 £1.95 each and save 37%

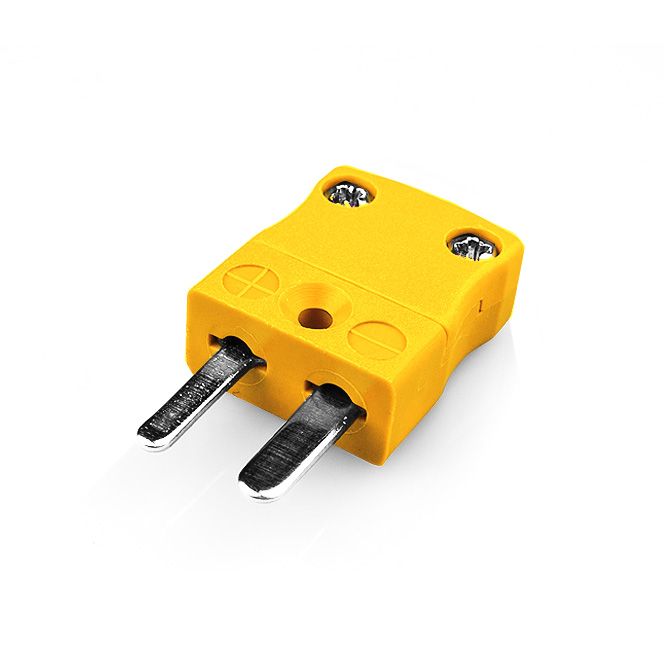

Miniature Thermocouple Connector Plug JM-J-M Type J JIS
With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.
Specifications
General Description | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
---|---|
Thermocouple Type | J JIS |
Connector Type | Plug |
Connector Size | Miniature |
Colour | Yellow |
Max. Temperature | 220°C |
Pins | Flat Pins |
+Positive Contact | Iron |
-Negative Contact | Copper Nickel |
Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Miniature Thermocouple Connector Plug From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
