Panels for Miniature Fascia Sockets (Type FF)

Panels for Miniature Fascia Sockets (Type FF)

Details

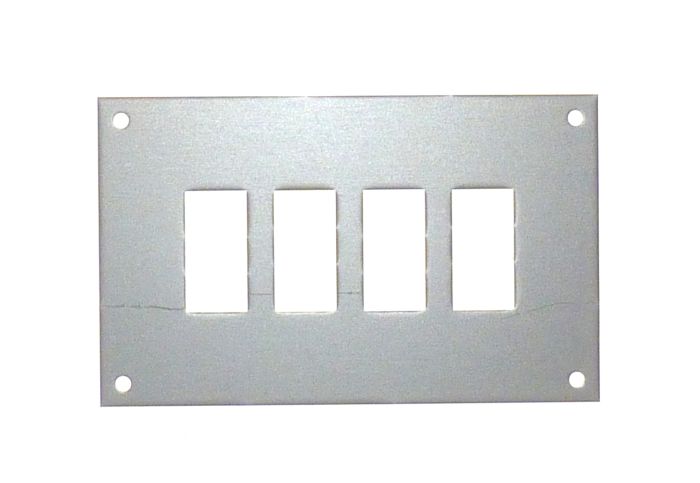

  • Flat aluminium panel
  • Suitable for miniature fascia sockets (type FF)


Formula for dimensions:

Length = (Nx15) + 25mm (N = number of ways per row)
Height = 45mm (single row), 75mm (double row)
Up to 12 ways in a single row, 16 to 24 ways in two rows

Data Sheet - Mini FF Data Sheet - Mini FF
Schematic - Mini FF panel Schematic - Mini FF panel
Data Sheet - Connector Panels Data Sheet - Connector Panels
Colour Chart - Thermocouple Cable Colour Chart - Thermocouple Cable
Frequently Asked Questions Frequently Asked Questions
Product Focus - Connectors brochure Product Focus - Connectors brochure
Colour Chart - Connectors Colour Chart - Connectors
Wall Chart Wall Chart
GBP EUR USD JPY
Excl. VAT: £3.38 Incl. VAT: £4.06

* Required Fields

Labfacility Part No:
XE-1701
Lead Time:
Select Options
Tariff Code:
90330000
Product Code
FMP
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
RoHS
