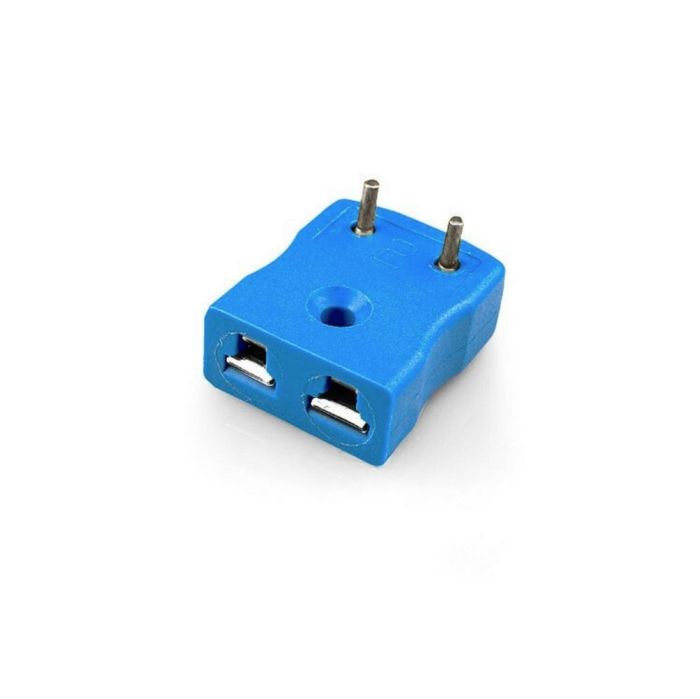

PCB Mounting Thermocouple Connector Socket AM-T-PCB Type T ANSI - Tin Plated Pins
Change Currency
- Buy 2 - 9 for £3.49 £2.91 each
- Buy 10 - 99 for £2.96 £2.47 each
- Buy 100+ for £2.80 £2.33 each
PCB Mounting Thermocouple Connector Socket AM-T-PCB-TIN Type T ANSI
Specially designed for PCBs, solid tin pins for direct board mounting & provision for CJC sensor
Specifications
| General Description | Versatile, high quality circuit board mounting miniature socket |
|---|---|
| Thermocouple Type | T ANSI |
| Connector Size | Miniature |
| Connector Type | PCB socket |
| Colour | Blue |
| Max. Temperature | 220°C |
| Pins | Tin Plated |
| +Positive Contact | Copper |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation of Miniature IEC Thermocouple Connector PCB Mounting Socket From Labfacility
PCB Mounting Thermocouple Socket IEC *Versatile, high quality circuit board mounting miniature socket *Specially designed for PCBs *Solid pins for direct board mounting *Provision for CJC sensor *Compatible with flow solder assembly *Max temperature 220 deg C About Labfacility Labfacility are the UK’s leading manufacturer of Temperature Sensors, Thermocouple Connectors and associated Temperature Instrumentation and stockists of Thermocouple Cables. The Company has been trading since 1971 and is ISO 9001 accredited. We have two UK sites – West Sussex and South Yorkshire and export to over 85 countries, Shipments are made to world-wide destinations on a daily basis. In addition to the stocked items, Labfacility also offers bespoke Temperature Sensors. We are specialists in the design and manufacture of custom-built temperature sensors at our 18,000 square foot Yorkshire plant located in Dinnington. We also offer a wide range of components and fittings for sensor installation. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams. Visit www.labfacility.com
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
