PCB Mounting Thermocouple Connector Socket IM-E-PCB Type E IEC
Change Currency
SKU
XE-1339-001
£4.08
£3.40
- Buy 2 - 9 for £3.17 £2.64 each and save 22%
- Buy 10 - 99 for £2.69 £2.24 each and save 34%
- Buy 100+ for £2.53 £2.11 each and save 38%

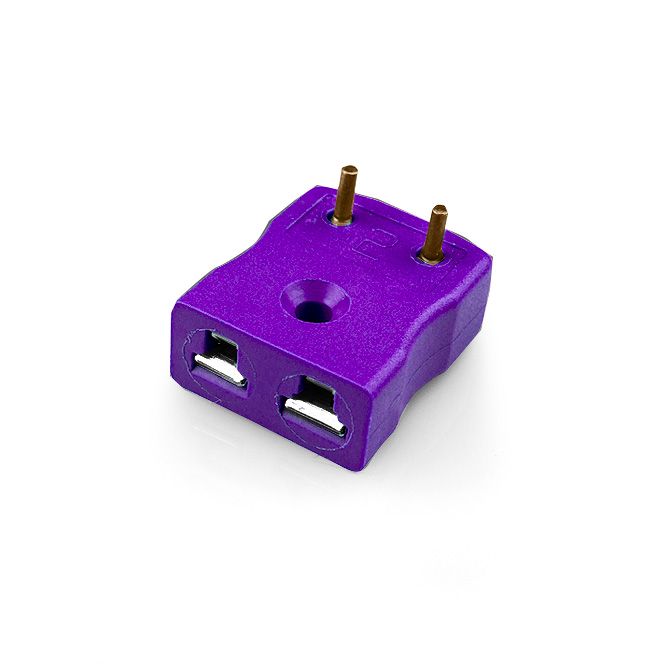

PCB Mounting Thermocouple Connector Socket IM-E-PCB Type E IEC
Specially designed for PCBs, solid pins for direct board mounting & provision for CJC sensor
Specifications
General Description | Versatile, high quality circuit board mounting miniature socket |
---|---|
Thermocouple Type | E IEC |
Connector Type | PCB socket |
Connector Size | Miniature |
Colour | Violet |
Max. Temperature | 220°C |
+Positive Contact | Nickel Chromium |
-Negative Contact | Copper Nickel |
Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of PCB Mounting Thermocouple Connector Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
