PFA Cable Tidy IEC Exposed Junction Thermocouple with Fitted Mini Plug - Type K - PFA Twin Twisted - 1M Length

Change Currency

SKU
XE-5598-001
£31.01 £25.84
  • Buy 2 - 4 for £25.92 £21.60 each
  • Buy 5+ for £23.33 £19.44 each

Maximum 30 characters

Maximum 40 characters

Series:
Cable Tidy Exposed Junction
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

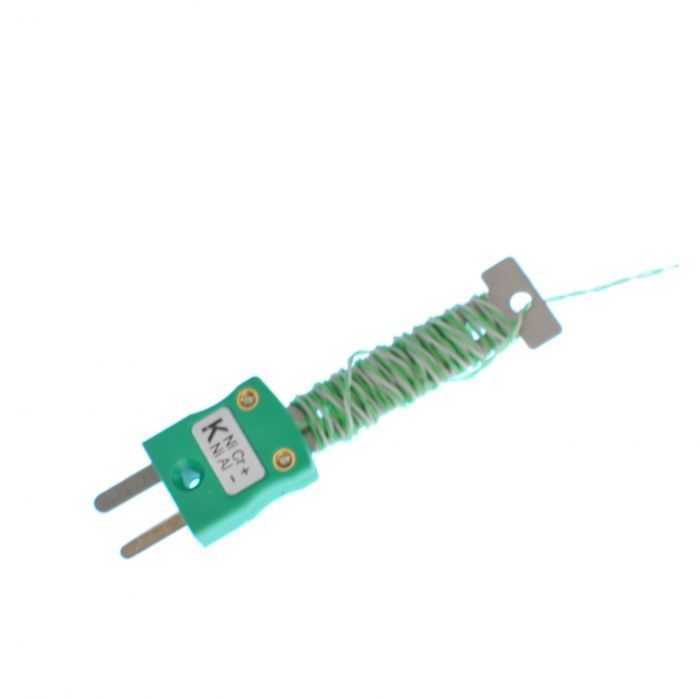

Cable Tidy Thermocouple with Fitted Miniature IEC Plug, PFA Twin Twisted or Flat Pair.

A complete precision fine wire, high sensitivity exposed junction thermocouple, with a fitted miniature connector.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information

Specifications

General Description A complete, precision fine wire, high sensitivity thermocouple with a fitted miniature connector and cable tidy.
Sensor Type Exposed Junction
Thermocouple Type K IEC
Cable Length 1M
Cable Type PFA Twin Twisted Insulated Wire
Termination Type Miniature flat pin plug, colour coded in accordance IEC 584
Max. Temperature Rated 220°C continuous
Tolerance Class 1
Standards Met IEC 584
Connector Type Plug
Connector Size Miniature

Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
