PFA Cable Tidy IEC Exposed Junction Thermocouple with Fitted Mini Plug - Type T - PFA Twin Twisted - 1M Length
Change Currency
SKU
XE-5600-001
£29.72
£24.77
- Buy 2 - 4 for £27.62 £23.02 each
- Buy 5+ for £22.36 £18.63 each

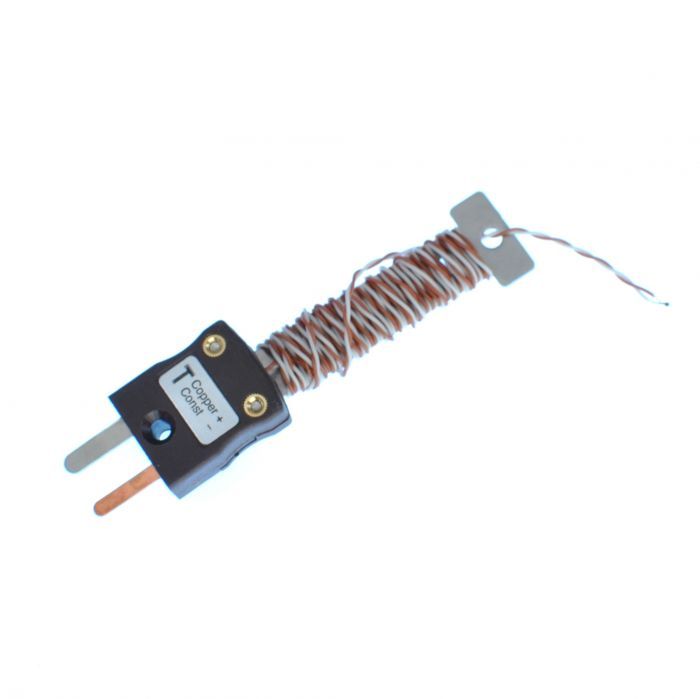

Cable Tidy Thermocouple with Fitted Miniature IEC Plug, PFA Twin Twisted or Flat Pair.
A complete precision fine wire, high sensitivity exposed junction thermocouple, with a fitted miniature connector.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | A complete, precision fine wire, high sensitivity thermocouple with a fitted miniature connector and cable tidy. |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | T IEC |
| Cable Length | 1M |
| Cable Type | PFA Twin Twisted Insulated Cable |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | Rated 220°C continuous |
| Tolerance | Class 1 |
| Standards Met | IEC 584 |
| Connector Type | Plug |
| Connector Size | Miniature |
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
