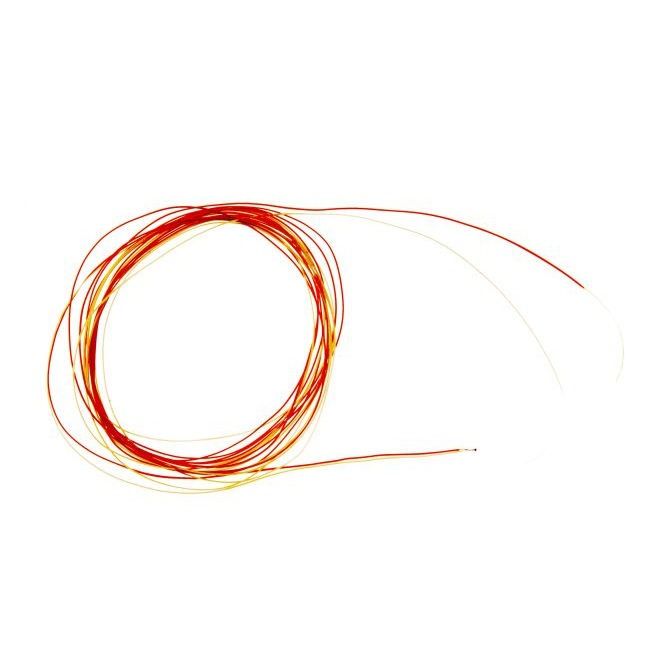

ANSI PFA Insulated Fine Gauge Exposed Junction Thermocouple (0.076mm conductors) - 1M Length
Change Currency
SKU
XE-2006-001
£24.26
£20.22
- Buy 2 - 4 for £18.06 £15.05 each
- Buy 5+ for £14.44 £12.03 each
Specifications
| General Description | Fine Gauge Exposed Welded Tip Thermocouple |
|---|---|
| Sensor Type | Fast response, welded tip exposed junction |
| Thermocouple Type | K |
| Thermocouple Junction | Exposed |
| Cable Length | 1m |
| Cable Type | Teflon® PFA insulated wires |
| Core / Strands | 0.003” (0.076mm) conductors |
| Cable Termination | Bare tails |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| Standards Met | ANSI colour coded |
