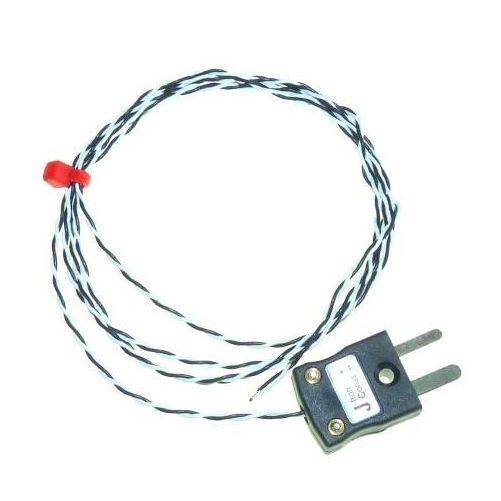

PFA insulated Twin Twisted IEC Exposed Junction Thermocouple with Miniature Plug - Type J - 1/0.2 Strand Size - 10M Length
Change Currency
SKU
XE-0408-001
£23.56
£19.63
- Buy 2 - 4 for £22.94 £19.12 each
- Buy 5+ for £22.69 £18.91 each
Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with a Miniature plug termination.
Ideal for test and development applications.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Fast response, welded exposed junction |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | J IEC |
| Cable Length | 10M |
| Cable Type | Teflon® PFA insulated twin-twisted lead |
| Core / Strands | 1/0.2mm |
| Termination Type | Miniature flat pin plug colour coded in accordance IEC 58 |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Tolerance | Class 1 |
| Standards Met | IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
