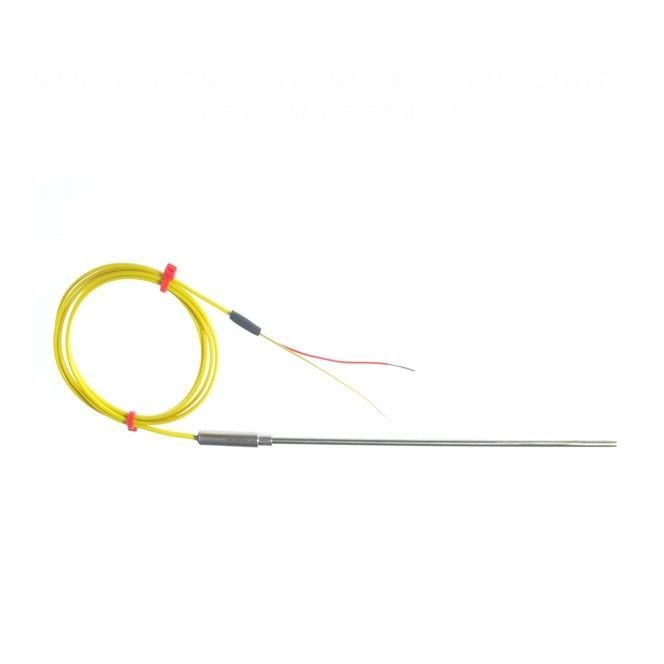

Mineral Insulated Thermocouple with Plain Pot Seal and PFA Insulated ANSI Lead - Type K with 1M Cable Length - 1.0mm x 150mm
Change Currency
- Buy 2 - 14 for £27.49 £22.91 each
- Buy 15+ for £26.12 £21.77 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Thermocouple Type | K |
| Element/hot junction | Insulated hot junction |
| Probe Diameter | 1.0mm |
| Probe Length | 150mm |
| Sheath Material | 310 stainless steel sheath |
| Pot Type | Plain pot seal (200°C) |
| Cable Length | 1M |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to ANSI MC96.1) |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | 750°C |
| Standards Met | colour coded to ANSI MC96.1 |
