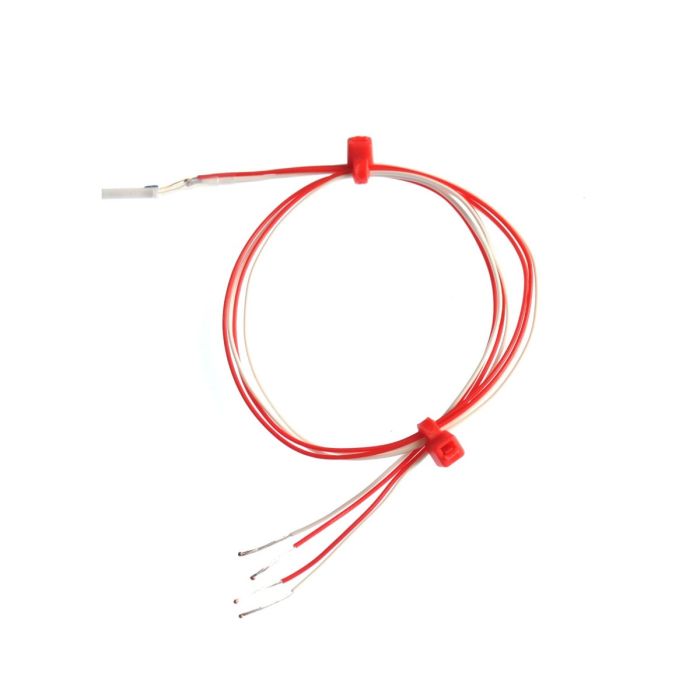

Platinum Resistance Detectors with extended leads, Thin Film - Pt100 Class B-2-wire - 300mm extended lead length

Change Currency

SKU
XE-5584-001
£23.60 £19.67
  • Buy 2 - 4 for £19.75 £16.46 each
  • Buy 5+ for £17.76 £14.80 each
Series:
Extended Leads Pt100
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Suitable for air, surface & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)

Specifications



General Description Platinum Resistance Detectors with extended leads, Thin Film
Sensor Type Platinum Resistance, Pt100 Ohms
Element Thin Film - Pt100 Ohm
Cable Length 300mm
Cable Type Teflon® insulated, stranded conductors
Core / Strands 7/0.2mm
Cable Termination Bare tails
Max. Temperature 250°C
Min. Temperature -50°C
Tolerance Class B
Standards Met European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008
Extended lead wire configuration 2 Wire
Fundamental interval (0°C to 100°C): 38.5 ohms nominal (100 ohms)
Ice point resistance 100 Ohm
