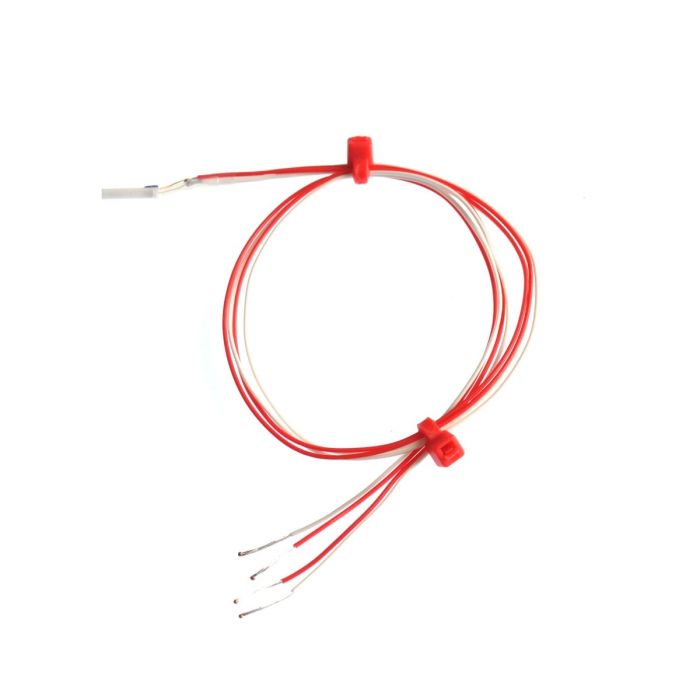

Platinum Resistance Detectors with extended leads, Thin Film - Pt1000 Class B-2-wire - 1000mm extended lead length

Change Currency

SKU
XE-5592-001
£27.50 £22.92
  • Buy 2 - 4 for £22.99 £19.16 each
  • Buy 5+ for £20.69 £17.24 each
Series:
Extended Leads Pt1000
Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Suitable for air, surface & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)

Specifications



General Description Platinum Resistance Detectors with extended leads, Thin Film
Sensor Type Platinum Resistance, Pt1000 Ohms
Element Thin Film - Pt1000 Ohm
Cable Length 1000mm
Cable Type Teflon® insulated, stranded conductors
Core / Strands 7/0.2mm
Cable Termination Bare tails
Max. Temperature 250°C
Min. Temperature -50°C
Tolerance Class B
Standards Met European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008
Extended lead wire configuration 2 Wire
Fundamental interval (0°C to 100°C): 38.5 ohms nominal (100 ohms)
Ice point resistance 1000 Ohms
