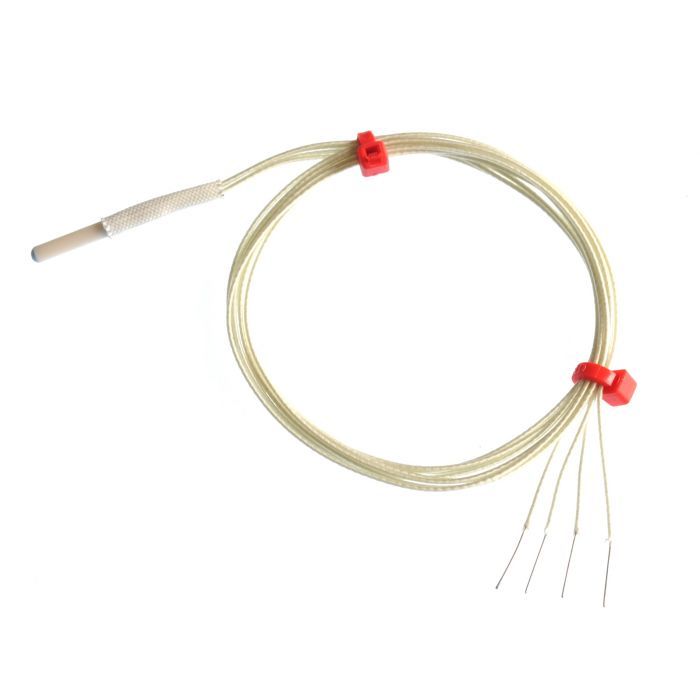

Platinum Resistance Detectors with extended leads, Wire-Wound Ceramic - 2 Wire - 300mm Length

Change Currency

SKU
XE-5595-001
£42.46 £35.38
  • Buy 2 - 4 for £35.50 £29.58 each
  • Buy 5+ for £31.94 £26.62 each
Series:
Wire Wound Detector with Extended Leads
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90330000
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Optimum performance, suitable for air & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.).

Specifications

General Description Platinum Resistance Detectors with extended leads, Wire-Wound Ceramic
Sensor Type Platinum Resistance, Pt100 Ohm
Sheath Material Platinum coil wire-wound construction sealed inside a high purity alumina ceramic body
Cable Length 300mm
Cable Type Glass-fibre insulated nickel
Cable Termination Bare tails
Max. Temperature 350°C
Min. Temperature -50°C
Standards Met European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008
Accuracy Class B
Extended lead wires 2 Wire
Detector Dimensions 2.8mm x 15mm
Fundamental interval 38.5 ohms nominal (100 ohms)
Ice point resistance 100 Ohms
