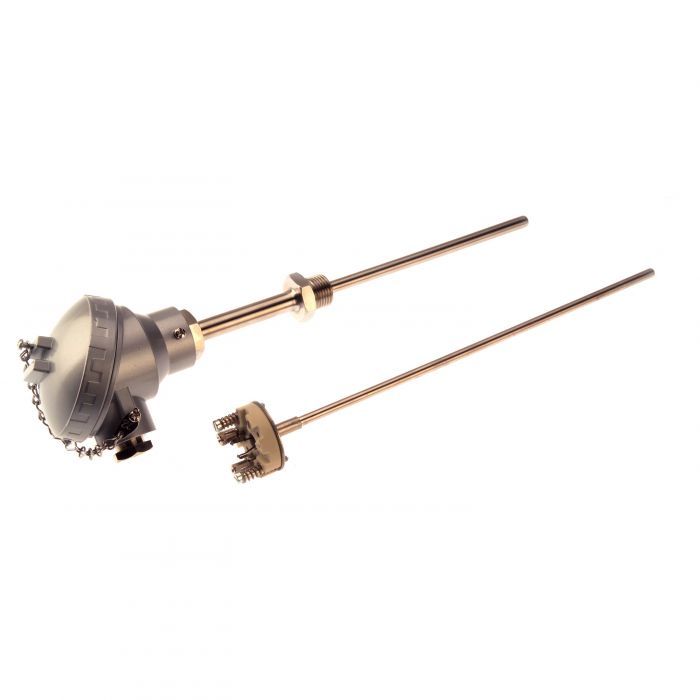

Platinum Resistance Pt100 Industrial Probe with Lagging Extension. 150mm x 8.0mm probe with 275mm x 6.0mm insert

Change Currency

SKU
XE-3640-001
£106.72 £88.93
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.

Specifications

Sensor Type Pt100 (100 Ohms @ 0°C) to IEC 751
Insert 6.0mm diameter 316 stainless steel terminated with spring loaded ceramic connection block
Process Connection 1/2"BSP parallel
Cable Connection M20 x 1.5mm cable entry (gland included)
Termination Type IP67 aluminium alloy weatherproof KNE connection head
Max. Temperature +450°C (connection head @ 170°C)
Min. Temperature -50°C
Tolerance Class B
Number of Wires 4
Probe Material 8.0mmØ 316 stainless steel below 1/2”BSP parallel process connection 1/2" diameter x 75mm lagging length to underside of connection head
