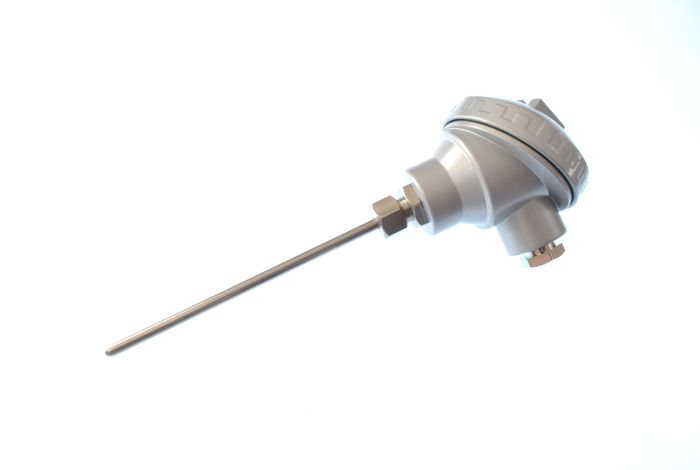

Pt100 3 wire class B Resistance Thermometer, KNE Head with Transmitter - 0-100°C Transmitter Range
Change Currency
- Buy 2 - 4 for £193.74 £161.45 each
- Buy 5+ for £184.06 £153.38 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Pt100 probe with KNE terminal head fitted with a transmitter |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 3 wire |
| Process Connection | 1/2"BSP x 6mm |
| Calibration | IEC |
| Probe Diameter | 6.0mm |
| Probe Length | 150mm |
| Head Type | KNE |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Accuracy | Class B |
| Transmitter | 0-100°C range |
| Number of Wires | 3 |
