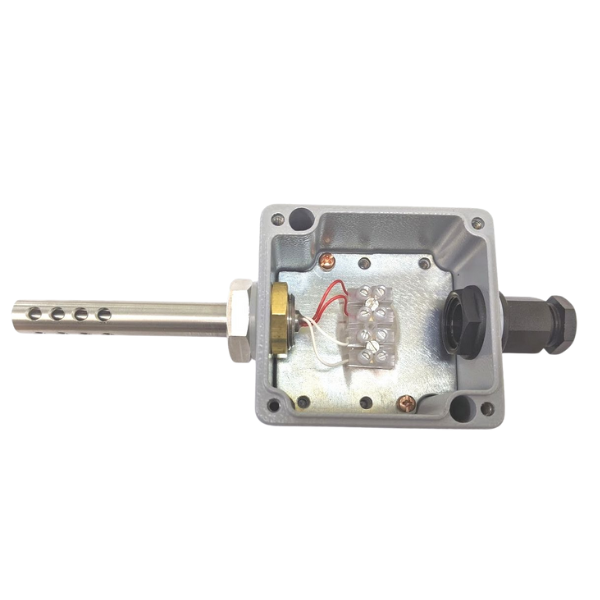

Pt100 Outdoor / Cold Store Temperature Sensors - Type PRT - Dual Element

Change Currency

SKU
XE-3674-001
£192.43 £160.36
  • Buy 2 - 14 for £163.00 £135.83 each
  • Buy 15+ for £132.86 £110.72 each
Series:
Outdoor / Cold Store Pt100
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Duplex 2 x 4 wire with two independent sensing elements, allowing connection to two measurement or control devices; alternatively one sensor may be used as a primary and the other as a back up, eliminating the need to remove and replace the probe if one of the sensors should fail – can be connected to any Pt100 2, 3 or 4 wire instrument.

Pt100 (100 Ohms @ 0°C) to IEC 751, Class B.

Specifications



General Description Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing
Sensor Type Dual Element: Pt100 (100 Ohms @ 0°C) to IEC 751, Class B
Housing Painted Die-Cast Aluminium Housing L80 x W74 x H54mm
Element Pt100, class B to IEC 751
Sheath Material Perforated 316 stainless steel probe, 12.7mm x 75mm
Gland M20 cable entry gland
Max. Temperature 150°C
Min. Temperature -50°C
IP Rating IP67
Transmitter Optional transmitter device has an ambient operating range of -40 to +85°C
Number of Wires 4
