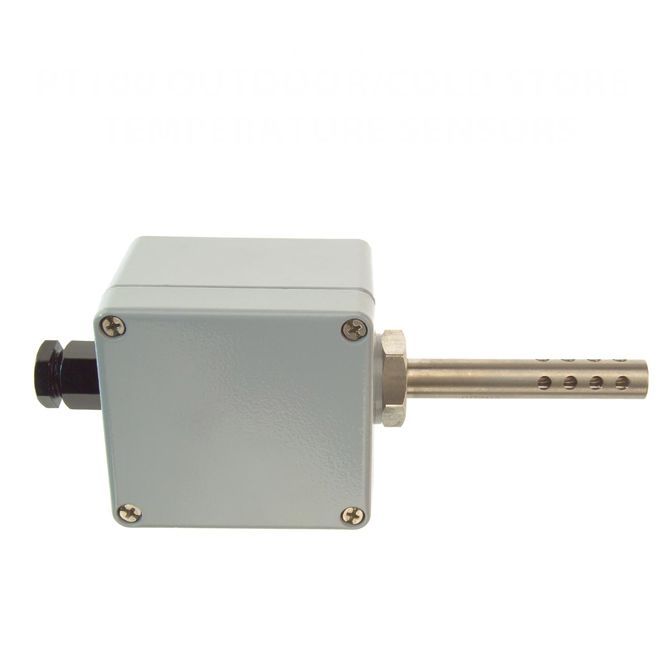

Pt100 Outdoor / Cold Store Temperature Sensors - Type PRT - Single Element
Change Currency
SKU
XE-3673-001
£169.00
£140.83
- Buy 2 - 14 for £132.86 £110.72 each
- Buy 15+ for £115.16 £95.97 each
Single 4 wire element, allowing connection to any Pt100 2, 3 or 4 wire instrument.
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire single element
Specifications
| General Description | Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing |
|---|---|
| Sensor Type | single element, Pt100 (100 Ohms @ 0°C) to IEC 751, Class B |
| Housing | Painted Die-Cast Aluminium Housing L80 x W74 x H54mm |
| Element | Pt100, class B to IEC 751 |
| Sheath Material | Perforated 316 stainless steel probe, 12.7mm x 75mm |
| Gland | M20 cable entry gland |
| Max. Temperature | 150°C |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Transmitter | Optional transmitter device has an ambient operating range of -40 to +85°C |
| Number of Wires | 4 |
