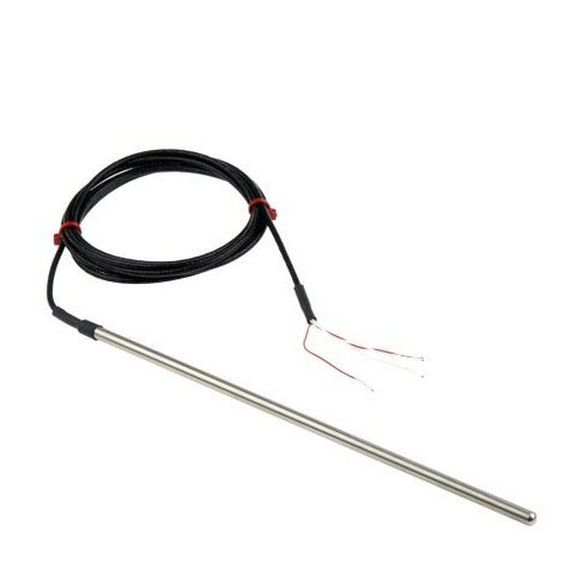

Pt100 Precision Probe with 2 metre lead - Type RTD / PRT - 6.0mm Diameter - 350mm Length with Bare Tails Termination

Change Currency

SKU
XE-3689-001
£149.14 £124.28

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Precision Pt100 sensor offering high accuracy over the range -50 to 250°C or 0°C to 450°C. Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths, or for those looking for a high accuracy probe better than the usually offered class A or B types. These Precision Pt100 sensors have accuracies better than 1/5 DIN (ie. ±0.06°C @ 0°C).

  • High accuracy, better than 1/5 DIN
  • 250°C & 450°C versions

PRT sensor assemblies are constructed using sensing resistors (detectors) of the specified tolerance ( i.e. Class A, 1/5DIN, 1/10DIN etc.). This tolerance refers to the detector only, not the complete, fabricated probe. Detector tolerance is rarely achieved via the probe terminations due to lead resistance effects, welding of extension leads to the detector and general manipulation during construction. The true measurement uncertainties are available via optional UKAS traceable Probe Calibration.

Specifications

General Description Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths
Sensor Type Pt100 1/5th Din, 4 wire
Cable Connection 4-Wire current and voltage
Calibration ISO17025 (UKAS) calibration not included - please contact our sales team
Probe Diameter 6mm
Probe Length 350mm
Sheath Material Stainless steel 316 sheath
Cable Length 2m
Cable Type PFA insulated screened lead
Core / Strands 7/0.2mm
Cable Termination Bare tails
Max. Temperature +450°C
Min. Temperature 0°C
Accuracy High accuracy, +/- 0.06°C at 0°C
