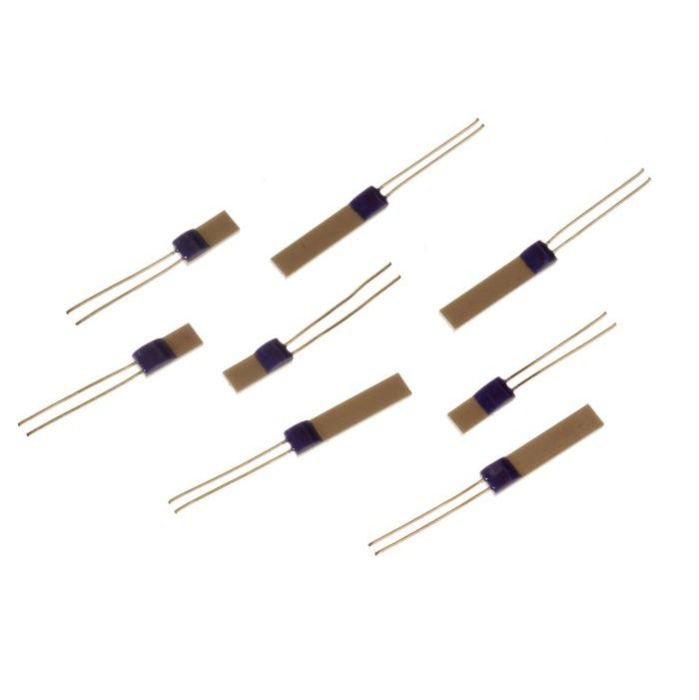

1000 Ohm Flat Film Detectors - Class B - 2mm x 10mm
Change Currency
- Buy 2 - 14 for £5.86 £4.88 each
- Buy 15+ for £5.48 £4.57 each
Labfacility are currently multi-sourcing flat film detectors in order to ensure we can maintain a supply service to our customers without affecting the quality or functionality for the foreseeable future.
All flat film detectors supplied, although differing in appearance and packaging in some cases, will meet the specifications as published on our data sheets.
Specifications
| Sensor Type | Pt1000 (1000 Ohms @0°C) |
|---|---|
| Element | Thin film, 10mm tails Pt1000 |
| Max. Temperature | 500°C |
| Min. Temperature | -50°C |
| Tolerance | Class B in accordance with IEC60751 |
| Dimensions | 2mm Width x 10mm Length |
| Fundamental interval | 385 ohms (nominal) |
| Ice point resistance | 1000 ohms |
| Self-heating | <0.5oC/mW |
| Stability | ±0.05% |
| Thermal response | <0.4s @ t0.9 (in water at 0.4m/sec) |
| Important Information | Thin film construction resists vibration & shock |
