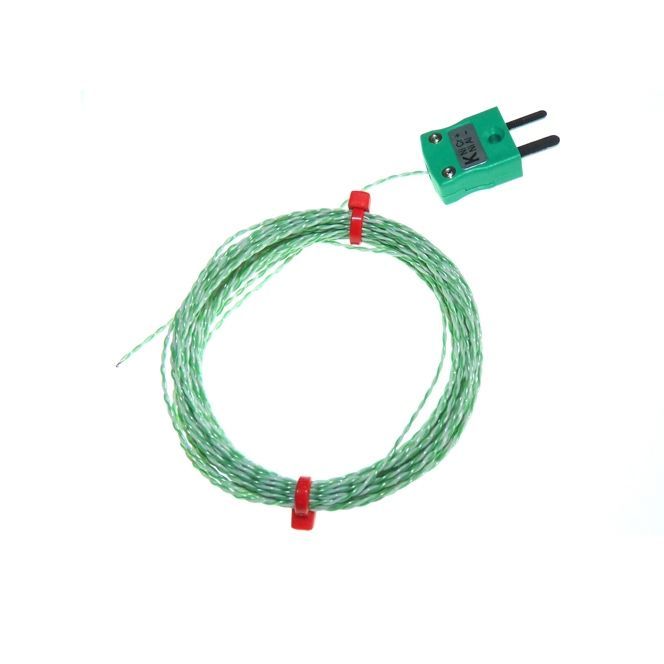

PTFE insulated Twin Twisted IEC Exposed Junction Thermocouple with Miniature Plug - Type K - 1M Length
Change Currency
SKU
XE-3505-001
£9.56
£7.97
- Buy 2 - 4 for £7.18 £5.98 each
- Buy 5+ for £7.07 £5.89 each
Thermocouple type K,J or T. Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with a Miniature plug termination.
Ideal for test & development applications.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order, you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Fast response, welded exposed junction |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K IEC |
| Cable Length | 1M |
| Cable Type | Teflon® PTFE insulated twin-twisted lead |
| Core / Strands | 1/0.2mm |
| Termination Type | Miniature flat pin plug colour coded in accordance IEC 584 |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Tolerance | Class 1 |
| Standards Met | IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
