RTD Temperature Sensor with Hirschmann Connector - 100mm Probe Length

Change Currency

SKU
XE-5683-001
£95.60 £79.67
Series:
Hirschmann Temperature Sensor
Lead Time:
7 - 10 working days
Weight:
500g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

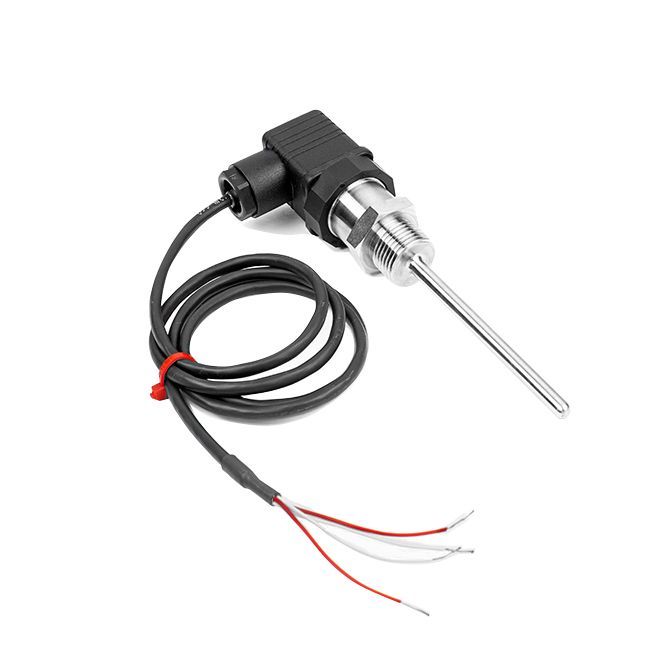

A cost effective 6mm diameter Pt100 sensor assembly housed in a 316 Stainless Steel body with 1/2" BSP process connection and fitted din connector with connection lead.

Specifications

General Description RTD Temperature Sensor & Hirschmann Connector
Sensor Type PT100 Class A
Process Connection 1/2" BSP
Probe Diameter 6.0mm
Probe Length 100mm
Cable Length 1m
Cable Type PVC Insulated
Max. Temperature 250°C
Min. Temperature -50°C
IP Rating IP65
Connection Type DIN connector Screw terminal
Number of Wires 4 wire connection
