Screw In Pt100 RTD Temperature Probes - 1/4" NPT process thread - 3mm sheath diameter - 100mm sheath length

Change Currency

SKU
XE-7317-001
£54.23 £45.19
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

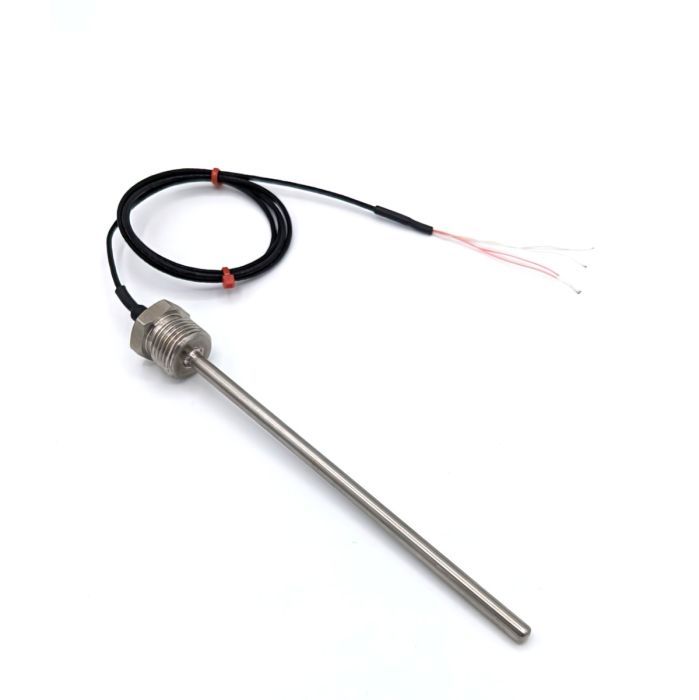

Screw in temperature sensors with a Pt100 class A 4 wire resistance thermometer detector (RTD) with a measuring range of -50 to +250°C with a 1 mete PFA lead wire

Available with process thread options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement. With standard diameters of 3 & 6mm diameter 316 Stainless steel sheath and standard lengths of 50, 100, 150 & 200.

  • Screw-in options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
  • Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
  • Sensor temperature rating -50 to +250°C
  • 3 & 6mm 316 stainless steel sheath
  • 50, 100, 150 & 200mm standard lengths

Typical Applications

  • Industrial Process Control
  • Pipes or Ducts
  • Vessels & Tanks

Specifications

General Description Screw in RTD with 1/4" BSPP process fitting
Sensor Type Pt100
Cable Length 1M
Cable Type PFA
Termination Type Stripped Wires
Sheath Length (mm) 100mm
Sheath Diameter (mm) 3mm
Process Connection options 1/4" NPT
Max. Temperature 250°C
Min. Temperature -75°C
Standards Met IEC 60751
Number of Wires 4
