Status SEM1801XTC - Single Channel Temperature Transmitter for Thermocouple Sensors. Atex and IECEx Approved

• K, J, N, E, T, R, S, L, U, B, C(W5), D(W3), G(W)
• ATEX AND IECEx APPROVED
• SINGLE CHANNEL VERSION
• (4 to 20) mA LOOP POWERED
• SENSOR OFFSET AND OUTPUT ALIGNMENT
• ISOLATION INPUT TO OUTPUT

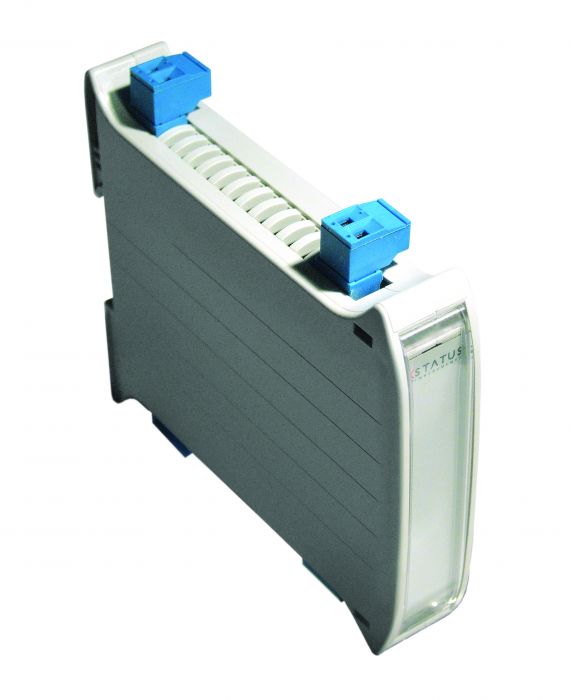

The SEM1801XTC Din rail temperature transmitter accepts thermocouple temperature sensors and converts the sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal.

PC configuration allows the user to select TC type, Range, Filter, units, linearization and Burnout direction, without
requiring calibration equipment. Additionally, the user may read live process data when connected to the PC (in the
safe area), this allows for sensor offset, and output alignment calibration, where the user can enter values to match
the actual process and therefore reducing system errors.

Product configuration software

If required, the desired range can be specified at the time of order, removing the need for user configuration.
If the range is not specified then the transmitter will be shipped with the default range of (0 to 1000) °C type K.
