SEM710PM Pressure and Temperature Transmitter (4 TO 20) mA Loop Powered

Change Currency

SKU
XE-6259
£196.56 £163.80
Lead Time:
Select options
Weight:
240g
Tariff Code:
90251900
Manufacturer:
Status
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Can't find what you are looking for? Other options are available, please contact our sales team for advice.

Pressure and temperature transmitter. (4 to 20) mA loop powered, 0-30 BAR

  • Pressure, Temperature, Process Transmitter
  • Dual 4 to 20mA output
  • 0-30 BAR
  • User linearization output for non linear tanks
  • User programmable pressure, temperature range
  • Datalogging function
  • USB or NFC Configuration, data download

The SEM710PM and SEM710PM/DP (with process display) are dual channel 4 to 20mA loop powered pressure and  transmitter transmitters, with user configurable pressure and temperature ranges.

Both 4/20mA  outputs can be programmed to

  • Output pressure so the same signal can be sent to two different devices.
  • Output pressure and process temperature
  • Output pressure and linearised pressure for volume or level applications

The 4./20mA outputs can be programmed over any part of the pressure sensor range. For example, the 30Bar version can be programmed for 0 to 10 bar, 0 to 16 bar, 0 to 20 bar etc.  Traditionally you would need one pressure sensor per range. This helps to reduce stock and lead times.

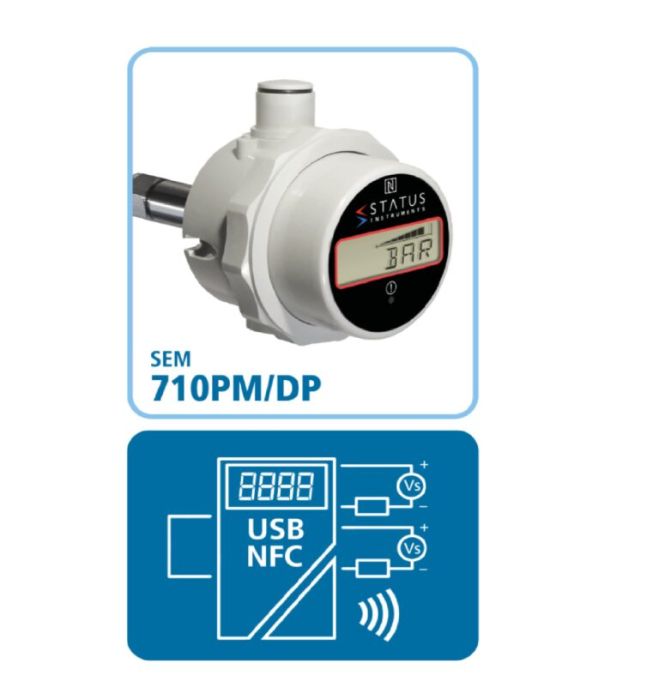

The SEM710PM/DP version can display pressure in various units, a scaled process value (custom units) and
temperature (°C or °F) on a 6-digit LCD display.

A datalogging feature is provided within the pressure transmitters via either USB or NFC (suitable Android device) connectivity. The logging function can record pressure or a scaled process value with the temperature of the medium. The SEM710PM series can continue to record time-stamp data for over 4 hours on the loss of the loop supply and resume on repower.

A 5-point calibration can be applied to the pressure sensor using the USBSpeedLink software.

Using a suitable Android device running the Status Instruments the NFCLink Config app. (download from our web site) can  be used to programme both the SEM710PM and SEM710PM-DP version instead of using a PC.  It can also be used to view the process values of the non display version.
