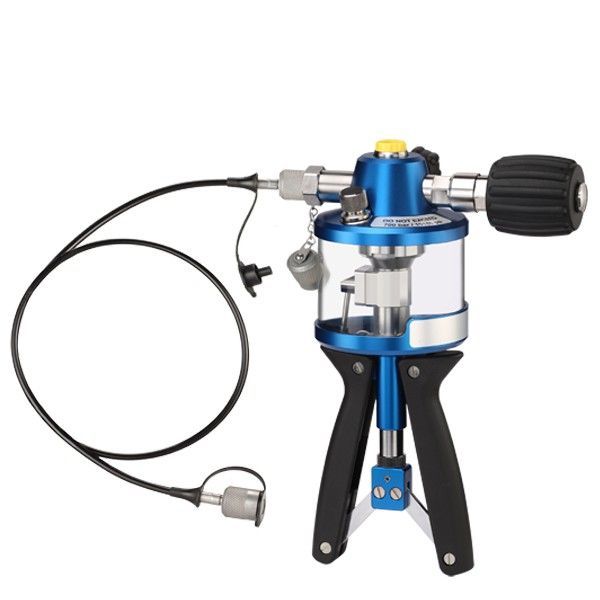

SIKA P700.3 Hydraulic Hand Pump 0 to 700 bar

Change Currency

SKU
XE-0732-001
£1,144.80 £954.00
Lead TIme:
5 working days
Weight:
1.70KG
Tariff Code:
90330000
Manufacturer:
SIKA - EPPM700EBL0003
Country of Manufacture:
DE
RoHS Compliant:

Possible areas of application

SIKA test pumps and pressure generators can be used everywhere, including on site in workshops, test and measurement rooms as well as laboratories. They cover a broad spectrum of industries with diverse applications.

  • Assembly and commissioning
  • Manufacturing and production
  • Maintenance and service
  • Quality assurance and test equipment monitoring
  • Repair

Description

Practical
The test pumps and pressure generators are designed to enable the direct connection of all pressure systems to be tested using adapters. The test sample is easily connected using the rugged industrial hose with integrated quick coupling and supplied adapters. The reference is fitted directly at the top of the pump using a positioning adapter.

The required test pressure is initially generated using the handles and then adjusted precisely with the fine adjustment valve. As a result, the pressure on both instruments is the same. The pressure relief valve allows continuous pressure reduction and ensures accurate and easy testing, even with decreasing pressure.

In the simplest case, the pressure is indicated by an analogue pressure gauge. An easy to read digital pressure gauge or hand-held instrument can also be used. The accuracy or adjustment of the pressure measuring device being tested can be checked by comparing the indicated reference value with the measured value for the device under test.

Mobile and independent
SIKA test pumps and pressure generators are ideal for mobile use. Their low weight and compact design make them easy to transport directly to the measurement site. The instruments can be used immediately and do not require an additional power supply. There is no need to take along nitrogen bottles or connect the equipment to a compressed air network. Wear-free manual pressure generation is simple and easy, regardless of ambient temperature and orientation.

Technical features

Basic version

  • Pressure medium: Distilled water or hydraulic fluid
  • Dimensions Approx: 255 x 225 x 85 mm
  • Weight Approx: 1.7 kg

Pressure ranges

  • With destilled water: 0...700 bar
  • With hydraulic fluid: 0...700 bar

Connections

  • Reference: G¼
  • Test sample: G¼ with quick coupling and pressure hose (1m)
