Standard Quick Wire Thermocouple Connector Plug JS-B-MQ Type B JIS

Standard Quick Wire Thermocouple Connector Plug JS-B-MQ Type B JIS

Details

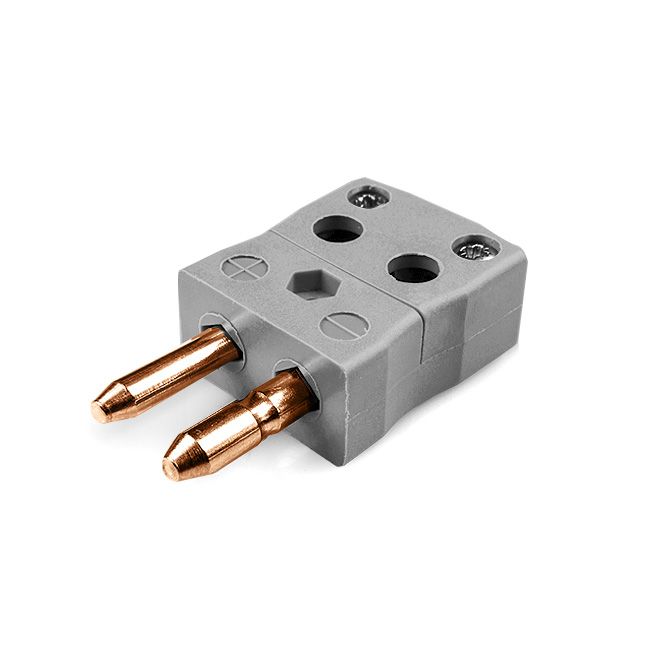

Standard Quick Wire Thermocouple Connector Plug JS-B-MQ Type B JIS

Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw. Contacts are polarised to prevent incorrect connection

*** See specifications tab for full details ***

General Description Easy 'jab-in' connection for rapid termination, contacts are polarised to prevent incorrect connection.
Thermocouple Type B JIS
Connector Type Quick Wire Plug
Connector Size Standard
Colour Grey
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
Pins Solid Round Pins
+Positive Contact Copper
-Negative Contact Copper
Standards Met BS EN 50212:1997. RoHS
Data Sheet & Schematic - JS-B-MQ Data Sheet & Schematic - JS-B-MQ
Colour Chart - Thermocouple Cable Colour Chart - Thermocouple Cable
Brochure - Connectors Brochure - Connectors
Product Focus - Connectors brochure Product Focus - Connectors brochure
Wall Chart Wall Chart
Colour Chart - Connectors Colour Chart - Connectors
Frequently Asked Questions Frequently Asked Questions
GBP EUR USD JPY
Excl. VAT: £4.03 Incl. VAT: £4.84
  • Buy 2+ for £3.34 (£4.01 incl. VAT) each
  • Buy 10+ for £3.02 (£3.63 incl. VAT) each
  • Buy 50+ for £2.60 (£3.12 incl. VAT) each
Labfacility Part No:
XE-9342-001
Lead Time:
In-Stock
Tariff Code:
90330000
Product Code
JS-B-MQ
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
RoHS
