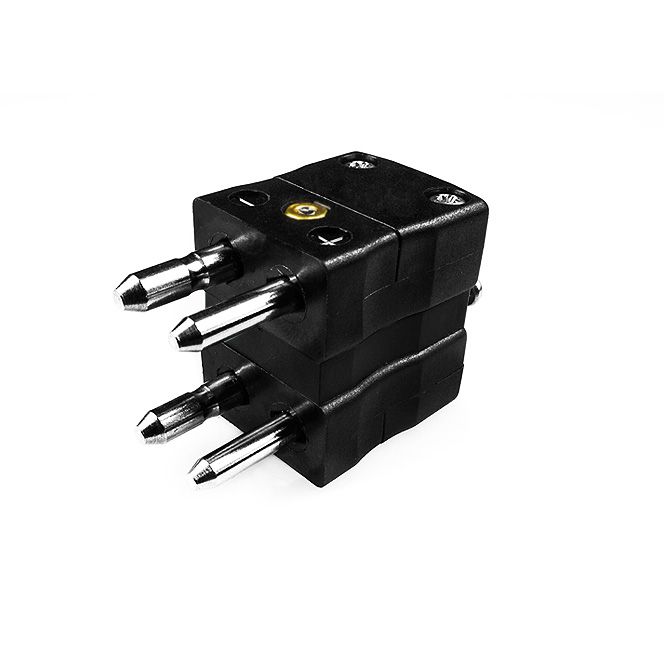

Standard Thermocouple Connector Duplex Plug AS-J-MD Type J ANSI
Rugged glass filled polyester bodies. Contacts are polarised to prevent incorrect connection
Specifications
General Description | Plugs fitted with solid thermocouple pins. Rugged glass filled polyester bodies, suitable for industrial applications. |
---|---|
Thermocouple Type | J ANSI |
Connector Type | Duplex Plug |
Connector Size | Standard |
Colour | Black |
Dimensions | See Schematic Drawing (Product Literature Tab) |
Max. Temperature | 220°C |
Pins | Solid Round Pins |
+Positive Contact | Iron |
-Negative Contact | Copper Nickel |
Standards Met | BS EN 50212:1997. RoHS |
3D Animation of Standard IEC Thermocouple Connector Duplex Plug From Labfacility
3D Animation Standard Thermocouple Connector Duplex Plug from Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
