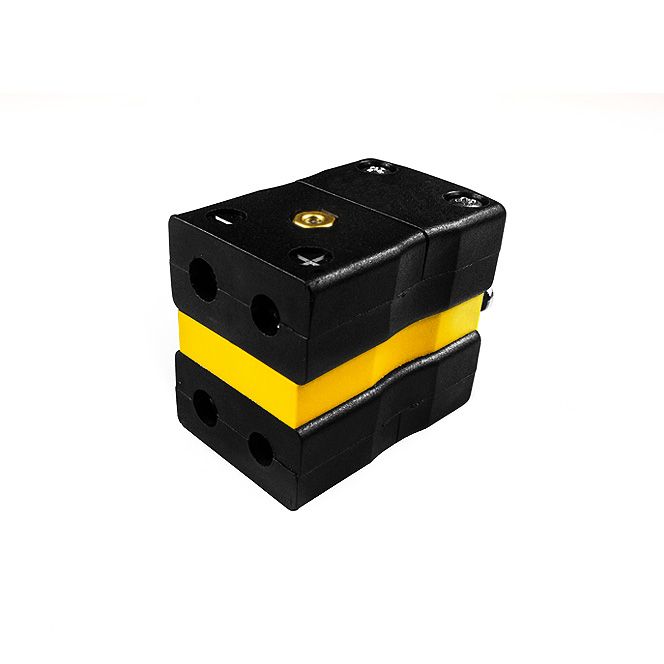

Standard Thermocouple Connector Duplex Socket AS-K-FD Type K ANSI

Change Currency

SKU
XE-1447-001
£15.29 £12.74
  • Buy 2 - 9 for £11.56 £9.63 each and save 24%
  • Buy 10 - 99 for £9.83 £8.19 each and save 36%
  • Buy 100+ for £9.25 £7.71 each and save 39%
Lead Time:
In-Stock
Weight:
40g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Standard Thermocouple Connector Duplex Socket AS-K-FD Type K ANSI

Rugged glass filled polyester bodies. Contacts are polarised to prevent incorrect connection

Speifications

General Description Rugged glass filled polyester bodies, suitable for industrial applications.
Thermocouple Type K ANSI
Connector Type Duplex Socket
Connector Size Standard
Colour Yellow
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
+Positive Contact Nickel Chromium
-Negative Contact Nickel Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Thermocouple Connector Duplex Socket from Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
