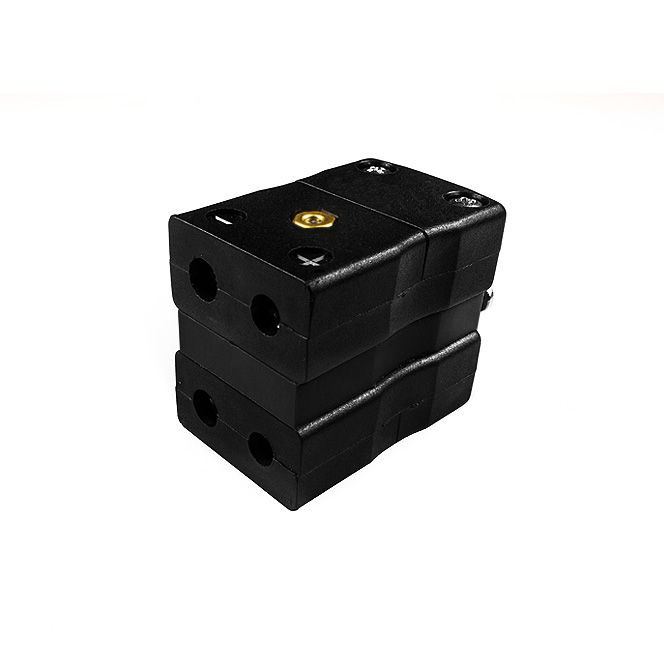

Standard Thermocouple Connector Duplex Socket JS-R/S-FD Type R/S JIS

Change Currency

SKU
XE-9327-001
£16.36 £13.63
  • Buy 2 - 9 for £11.56 £9.63 each and save 29%
  • Buy 10 - 99 for £9.83 £8.19 each and save 40%
  • Buy 100+ for £9.25 £7.71 each and save 43%
Lead Time:
In-Stock
Weight:
40g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Standard Thermocouple Connector Duplex Socket JS-R/S-FD Type R/S JIS

Rugged glass filled polyester bodies. Contacts are polarised to prevent incorrect connection

Specifications

General Description Plugs fitted with solid thermocouple pins. Rugged glass filled polyester bodies, suitable for industrial applications.
Thermocouple Type R/S JIS
Connector Type Duplex Socket
Connector Size Standard
Colour Black
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
+Positive Contact Copper
-Negative Contact Copper Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Thermocouple Connector Duplex Socket from Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
