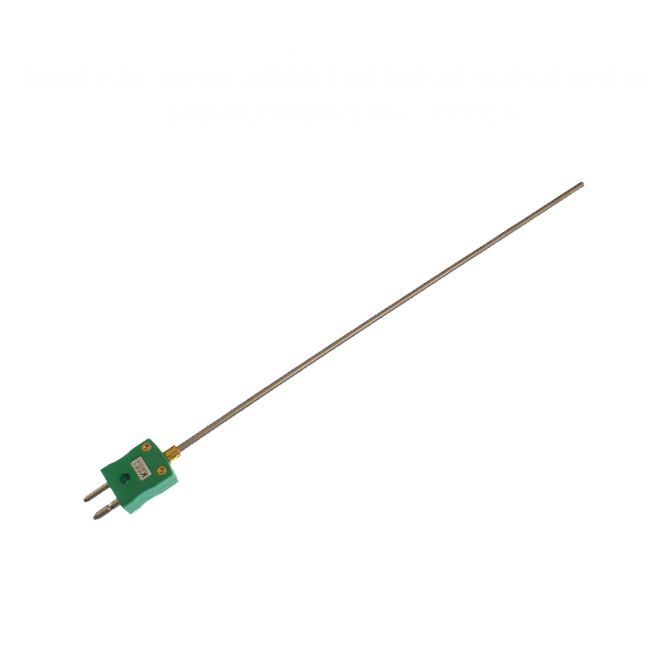

IEC Mineral Insulated Thermocouple with Standard Plug - Type K - 3.0mm x 150mm
Change Currency
- Buy 2 - 14 for £26.59 £22.16 each
- Buy 15+ for £26.02 £21.68 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 3.0mm |
| Probe Length | 150mm |
| Sheath Material | 310 Stainless Steel |
| Termination Type | Standard round pin plug, colour coded in accordance IEC 584-3 |
| Max. Temperature | 1100°C |
| Min. Temperature | -40°C |
| Standards Met | In accordance with IEC 584-1&2 |
| Connector Type | Plug |
| Connector Size | Standard |
| Colour | Green |
