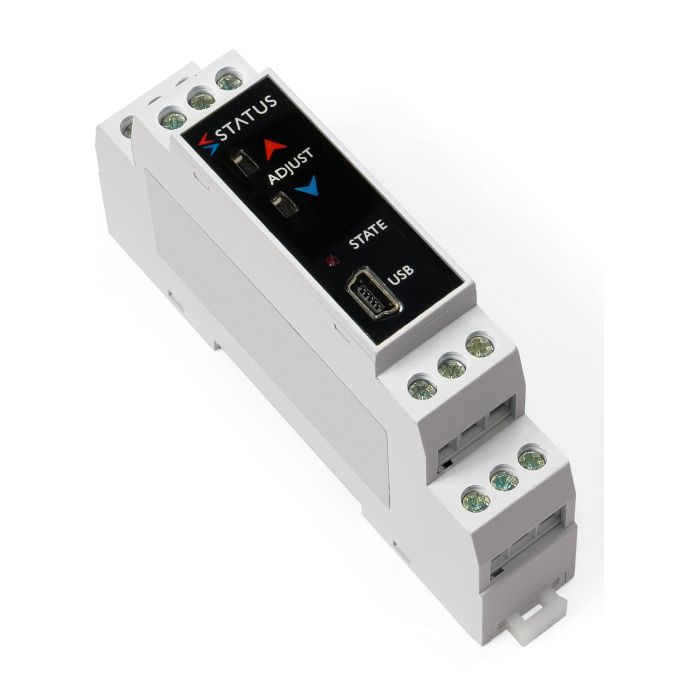

Status SEM1620 - Provides 3 Wire Voltage Output

• Pt100,Thermocouple,mV,mA Input
• (0 to 10), (0 to 5), (2 to 10), (1 to 5) and ( 0 to 1)V DC Output choices
• Push Button User Trim For In Process Fine Tuning
• Galvanic Isolation
• Optional USB Lead

The SEM1620 signal conditioner provides a 3 wire isolated voltage output signal and accepts RTD, Thermocouple, mV and passive current sensor inputs. It has been designed to accept most common process and temperature sensor inputs and provide the user with a three wire voltage output signal. Isolation is provided between input and output and all temperature ranges are linear to temperature.
