Surface Mount RTD Sensor with Miniature 3-PIN plug - 1M Length

Change Currency

SKU
XE-7703-001
£55.84 £46.53
  • Buy 2 - 14 for £50.26 £41.88 each
  • Buy 15+ for £47.47 £39.56 each
Series:
Bolt on RTD
Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

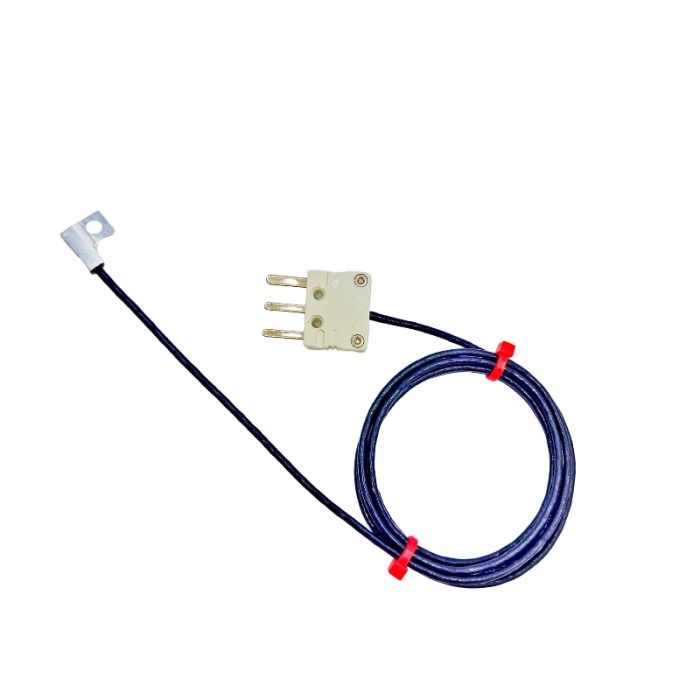

A bolt-on RTD Temperature Sensor with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting, complete with a PFA lead and tails.

The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.

It has a Pt100 Class A sensor as standard with optional Pt1000 sensor and lead lengths to suit, as well as non-standard connectors options, such as Lemo plug to suit your application.

Specifications

General Description RTD-830 style - Stripped 75mm tails as standard
Termination Type Miniature 3-PIN Plug
Max. Temperature 230°C
Min. Temperature -50°C
Tolerance Class A
Length 1M Lead
Number of Wires 4 wire or 3 wire with connector
