Surface Mount Type K IEC Thermocouple Sensor with Bare Tails Termination - 1M Lead Length
Change Currency
SKU
XE-7750-001
£79.54
£66.28
- Buy 2 - 4 for £59.64 £49.70 each
- Buy 5 - 14 for £49.42 £41.18 each
- Buy 15+ for £42.01 £35.01 each

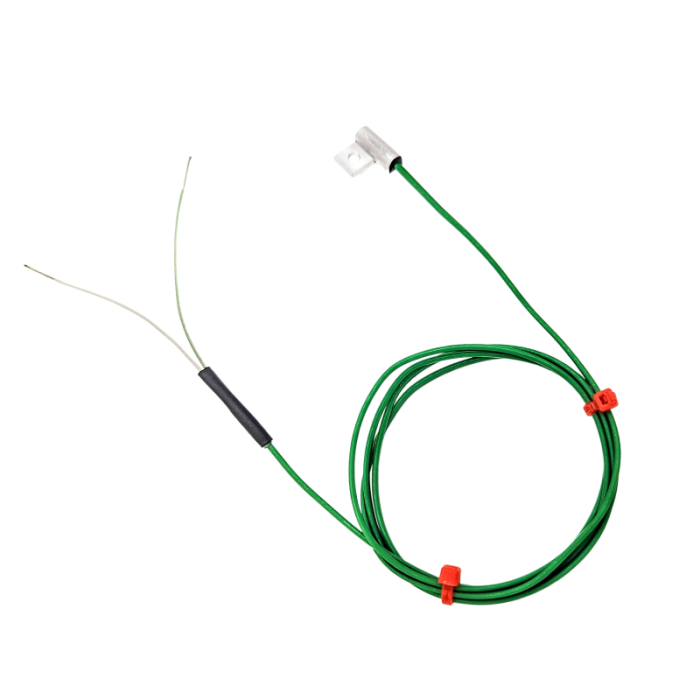

A bolt-on type thermocouple with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting. It is a Class 1 accuracy type K thermocouple as standard complete with a PFA lead with tails or mini plug. The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
Specifications
| General Description | Stripped 75mm tails as standard |
|---|---|
| Sensor Type | Thermocouple |
| Thermocouple Type | K |
| Fitting | 3mm Mounting Hole |
| Cable Type | PFA |
| Termination Type | Bare Tails |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Standards Met | IEC |
| Length | 1M |
| Important Information | Optional Type J or T version available on request |
