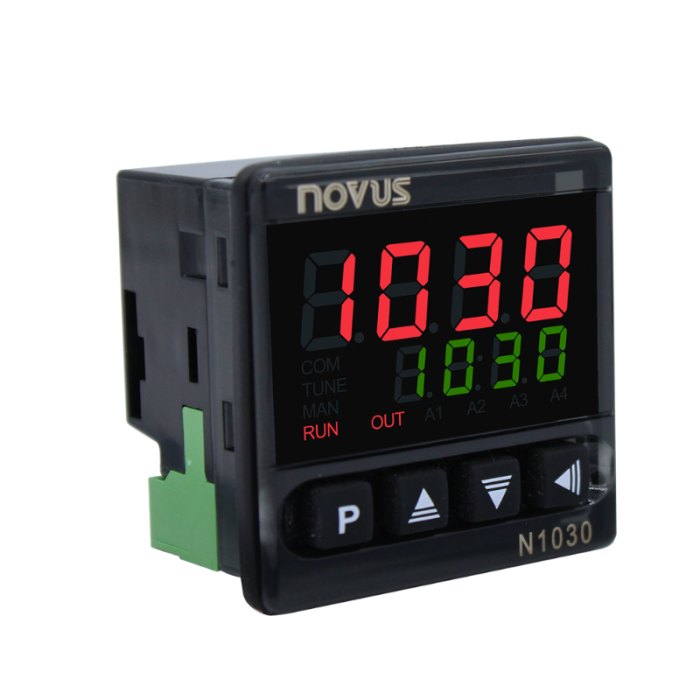

Novus Temperature Controller N1030 - 1 relay, pulse out

Change Currency

SKU

XE-4380-001

£50.68 £42.23

Skip to the beginning of the images gallery

N1030 is a temperature controller that features a high performance PID algorithm in a compact housing, with only 35 mm depth.

Its compact construction and the convenient detachable connector provide an easy set up on short profile panels, optimizing the space and reducing costs. It has two outputs always available which can be configured both as a control or an alarm.

Specifications

Input type: J, K, T and Pt100
Accuracy: T/C: 0,25%
Pt100: 0,2%
Detachable terminal block: Yes
Weight: 60 g
Dimensions: 48 x 48 x 35 mm (1/16 DIN)
Front panel thickness: 3,3 mm
PID auto tuning: Yes
Control mode: PID
On/Off
Control Action: Heating or cooling
Output: SSR Pulse
Relay
Sampling rate: 200 ms
Available alarm: 1
Alarm Types: Absolute Minimum, Absolute Maximum, Differential, Minimum Differential, Maximum Differential and Sensor Break
Timer: Yes, timer model available
Parameter lock: Password
Approval: CE and UL (C e US)
Front panel protection: IP65
Power supply: 100-240 Vca / 48-240 Vcc
or 12-24 Vcc / 24 Vca
Maximum consumption: 5 VA
Panel Format: 48 x 48 DIN 1/16
Warranty: 3 years
Measure displayed: °C and °F
Anti-flame material: UL94 V2

Product Video

Meet N1030 | English

N1030 is a compact, high-performance PID temperature controller with an excellent cost-benefit ratio. Being only 35mm deep, this controller is specific to places where space matters, optimizing areas and reducing costs. As a result of the innovative removable connector, the commissioning, and installation of the N1030 is easy and fast. Looking for high performance and low cost?

NOVUS Controllers - a general overview | English

From basics to advanced - a general overview of process and temperature controllers features. If you want to sell better and know how to specify the right controller, this webinar is for you! We will be covering: - Definitions; - Control theory; - PID x On/Off control; - Advanced features; - USB and configuration; - Model's comparison - Questions and Answers Free webinar training session!
