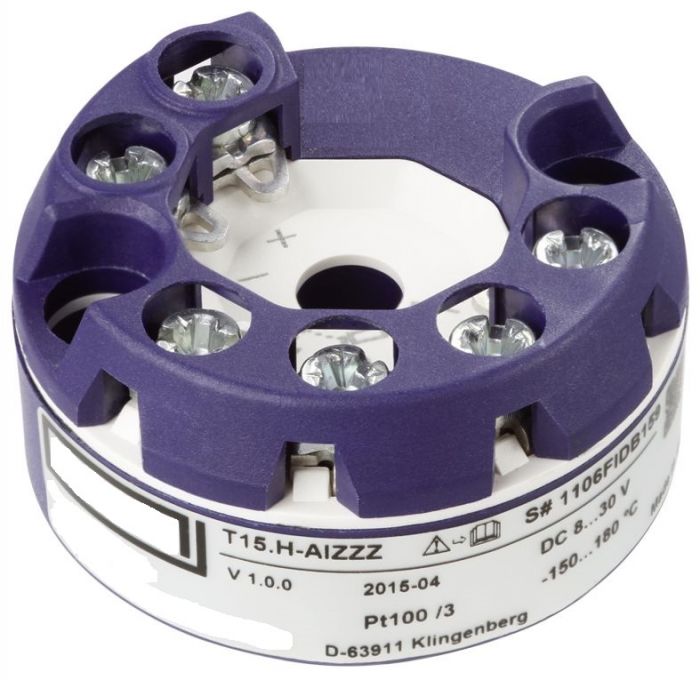

Digital temperature transmitter Model T15.H Head Mounting Version

Change Currency

£55.72 £46.43
Lead Time:
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:


  • Process industry
  • Machine building and plant construction


  • For the connection of Pt100 and Pt1000 sensors in a 2-,
  • 3- or 4-wire connection
  • For the connection of reed chains in a potentiometer
  • circuit
  • Parameterisation with the WIKAsoft-TT configuration
  • software and electrical connection via quick connector
  • magWIK
  • Connection terminals also accessible from the outside
  • Accuracy < 0.2 K / 0.1 %


These temperature transmitters are designed for universal
use in plant and machine building, and also in the
process industry. They offer high accuracy and excellent
protection against electromagnetic influences (EMI). Via the
WIKAsoft-TT configuration software and the model PU-448
programming unit, the model T15 temperature transmitters
can be parameterised very easily, quickly and with a clear

Besides the selection of the sensor type and the measuring
range, the software enables the error signaling operation,
damping and several measuring point descriptions to be
stored. Furthermore, the WIKAsoft-TT software offers a line
recording functionality where the temperature profile for the
sensor connected to the T15 can be displayed.

The model T15 transmitter also has diverse supervisory
functionality, such as the monitoring of the sensor wire
resistance and sensor-break detection in accordance with
NAMUR NE89 as well as monitoring of the measuring range.
Moreover, these transmitters have comprehensive cyclic
self-monitoring functionality.
