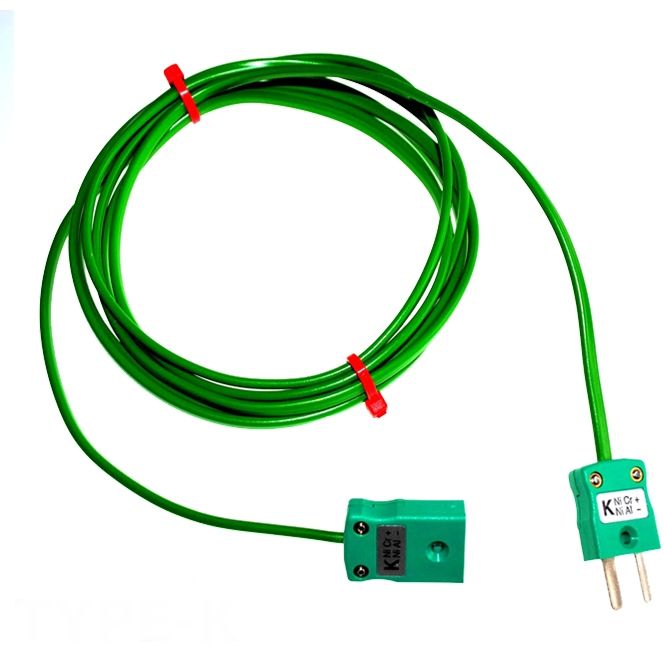

Type K PVC Extension Leads with Miniature Plug & Socket (IEC)

Change Currency

SKU
XE-7000
£20.10 £16.75
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Specifications

  • Cable Construction: Single pair 7/0.2
  • PVC insulated cable / wire
  • Laid flat, side by side & PVC sheathed
  • Tolerance class 2
  • Insulation rating -10 to 105°C
  • IEC colour coded


Miniature Connectors

  • Miniature connector with flat plug pins
  • Miniature socket with thermocouple contacts
  • Contacts are polarised to prevent incorrect connection
  • Max temperature 220°C
  • IEC colour coded



General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 2M, 5M, 10M, 15M
Cable Type Flat Pair Construction
Connector Type Thermocouple Plug & Socket
Connector Size Miniature
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
Drain Wire No
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Termination Type Miniature Thermocouple Plug and Socket
Tolerance Class 2
Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
