4 Core Silicone Rubber Insulated, Rounded Section, PRT Sensor Cable / Wire
Change Currency
SKU
XE-2798
£32.48
£27.07

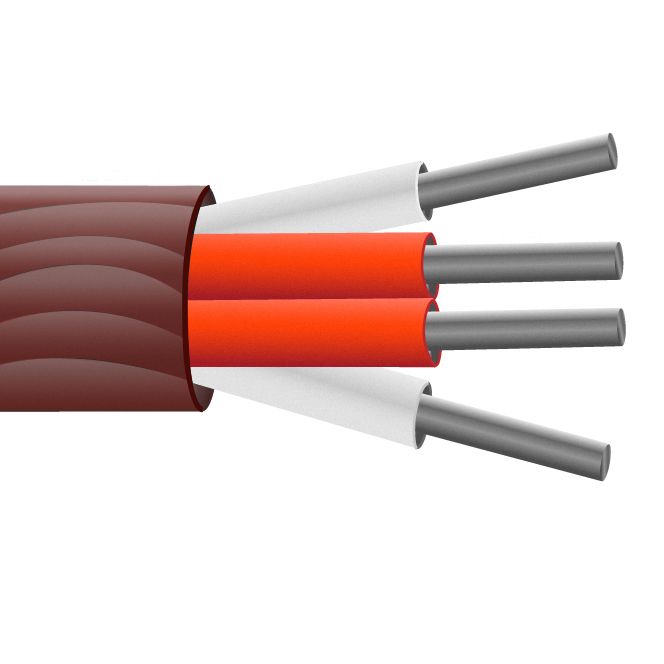

4 Core Silicone Rubber Insulated, Rounded Section, PRT Sensor Cable / Wire
Can be used to extend up to 4 wire RTD configurations. Commonly used with Pt100Ω thermometers but suitable with other types Pt130/500/1000Ω etc.
Specifications
| General Description | 4 core silicone rubber insulated 7/0.2mm tin plated copper conductors, twisted together with silicone rubber outer jacket |
|---|---|
| Cable Length | 10, 25m |
| Cable Type | Silicone rubber insulated |
| Core / Strands | 7/0.2mm |
| Insulation Material | Silicone rubber insulated, tin plated copper conductors, twisted together with silicone rubber outer jacket |
| Max. Temperature | +200°C |
| Min. Temperature | -40°C |
| Number of Wires | 4 |
| Standards Met | Cores colour coded 2 x Red / 2 x White to IEC-751 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
