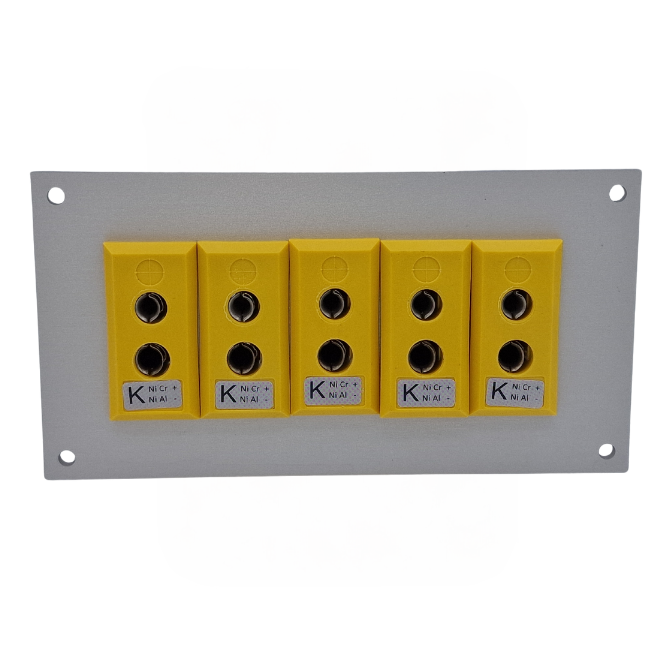

Thermocouple Connector Aluminium Panel with Type K ANSI Standard Sockets - 5 Way
Change Currency
- Buy 2+ for £56.02 £46.68 each
Pre-assembled Standard Thermocouple Connector Panels
A pre-assembled standard horizontal panel assembly designed for use with thermocouples or leads with standard plugs. Robust and perfect for mounting in control rooms, test stands, laboratory applications, control rooms, and more. They support calibration codes including K, J, T with quick wire sockets and can accommodate 1-24 way circuits, with a maximum temperature range up to +120°C.
- Supplied pre-fitted with Standard Fascia Sockets
- 5 way circuit
- Type K ANSI calibration
- Maximum temperature 120°C
Typical Applications
- OEMs
- Instrumentation panel builders
- Control rooms
- Test Rigs and Skids
| Thermocouple Type | K ANSI |
|---|---|
| Number of Ways | 5 Way |
| Connector Size | Standard |
| Connector Type | Fascia Panel Socket |
| Colour | Yellow |
| Dimensions | H66mm x W126mm |
| Max. Temperature | 120°C |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Nickel Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
