Thermocouple Connector Aluminium Panel with Type N IEC Miniature Sockets - 10 Way
Change Currency
- Buy 2+ for £69.55 £57.96 each

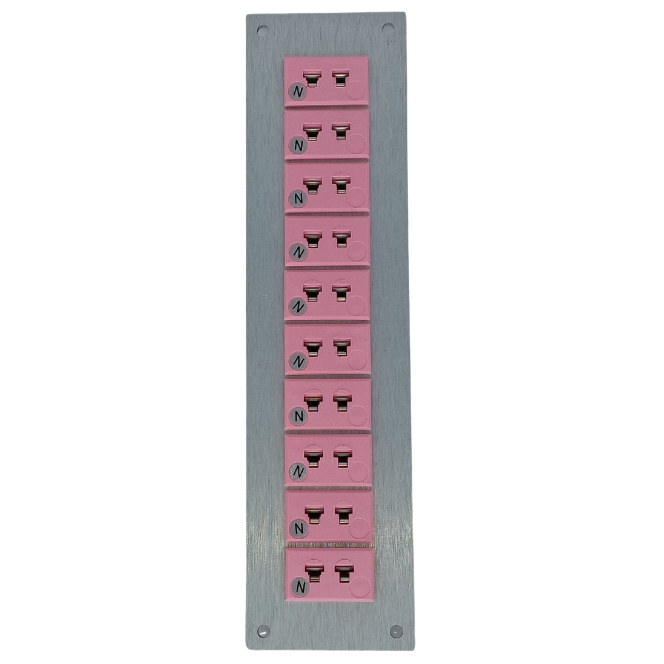

Pre-assembled Miniature Thermocouple Connector Panels
A pre-assembled miniature horizontal panel assemby designed for use with thermocouples or leads with miniature plugs. Robust and perfect for mounting in control rooms, test stands, laboratory applications, control rooms, and more. They support calibration codes including K, J, T \& N with quick wire sockets and can accommodate 1-24 way circuits, with a maximum temperature range up to +120°C.
- Supplied pre-fitted with Miniature Fascia Sockets
- 10 way circuit
- Type N IEC calibration
- Maximum temperature 120°C
Typical Applications
- OEMs
- Instrumentation panel builders
- Control rooms
- Test Rigs and Skids
| Thermocouple Type | N IEC |
|---|---|
| Number of Ways | 10 Way |
| Connector Size | Miniature |
| Connector Type | Fascia Mounting Socket |
| Colour | Pink |
| Dimensions | H45mm x W175mm |
| Max. Temperature | 120°C |
| +Positive Contact | Nickel / Chromium / Silicon |
| -Negative Contact | Nickel Silicon |
| Standards Met | BS EN 50212:1997. RoHS |
