High temperature Standard Thermocouple Connector Plug STC-N-M-HTP Type N
Change Currency
Lead time for these items can be around 4 - 5 weeks. You will be contacted by our sales team with more details and delivery update after ordering.
Please use the 'Product Enquiry' tab on the right if you require more information before ordering.

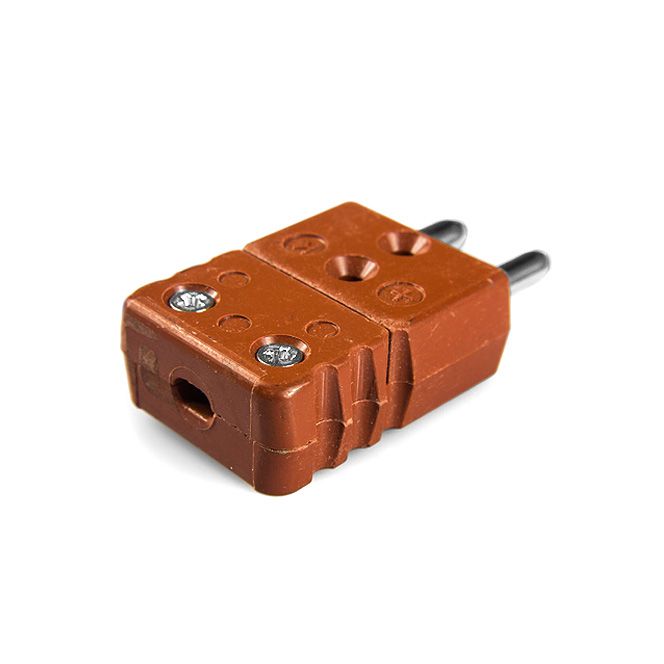

High temperature Standard Thermocouple Connector Plug STC-N-M-HTP Type N
High temperature for use up to 425°C. Heavy duty plastic body.
Specifications
| General Description | Contacts are polarised to prevent incorrect connection. Heavy duty plastic body |
|---|---|
| Thermocouple Type | N |
| Connector Type | High Temp Plug |
| Connector Size | Standard |
| Colour | Brown |
| Dimensions | See Schematic Drawing (Product Literature Tab) |
| Max. Temperature | 425°C |
| Pins | Solid Round Pins |
| +Positive Contact | Nickel / Chromium / Silicon |
| -Negative Contact | Nickel Silicon |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Standard Thermocouple Connector High Temperature Plastic Plug From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
