Type J Glassfibre Insulated Flat Pair Cable / Wire with Stainless Steel Overbraid (IEC)

Change Currency

SKU
XE-2275
£20.38 £16.98
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

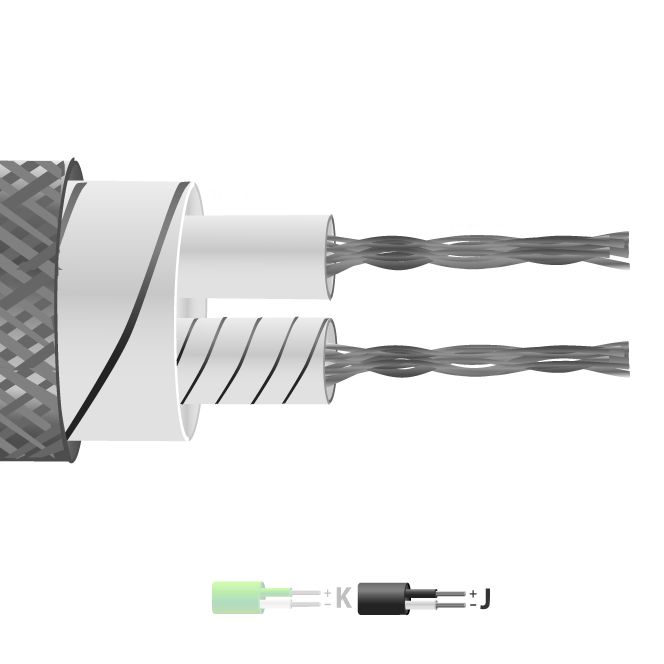

Type J Glassfibre Insulated Flat Pair Cable / Wire with Stainless Steel Overbraid (IEC)

Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre jacket, silicone varnished throughout + stainless steel overbraid for added protection and mechanical strength. Good temperature resistance but not suitable where fluids are present.

Specifications

General DescriptionGood strength to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids.
Cable Length10m, 25m, 50m, 100m
Cable TypeFlat pair cable
Core / Strands7/0.2mm
Conductor Cross Section 7/0.2 (mm2)0.219
+ ColourBlack
- ColourWhite
Drain WireNo
Insulation MaterialGlassfibre insulated extension cable with stainless steel overbraiding
Loop Resistance 7/0.2 (Ohms per combined metre)2.7
Max. Temperature+350°C (short periods up to 400°C)
Min. Temperature-60°C
+ ConductorIron
- ConductorConstantan
ScreenNo
Standards MetColour code (cores & jacket) to IEC-584-3
Thermocouple TypeJ
ToleranceClass 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
