Type J PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2242
£5.62 £4.68
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

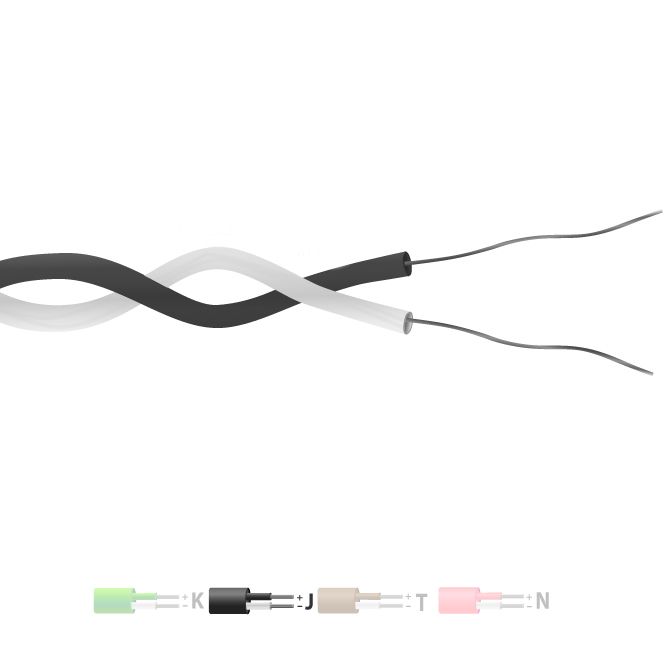

Type J PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)

PTFE insulated twin twisted pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.

Specifications

General DescriptionResistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility.
Cable Length10m, 25m, 50m, 100m
Cable TypeTwin twisted pair for extending or making simple thermocouples
Core / Strands1/0.2mm , 7/0.2mm, 1/0.315mm, 1/0.508mm
Conductor Cross Section 1/0.2 (mm2)0.032
Conductor Cross Section 1/0.315 (mm2)0.078
Conductor Cross Section 1/0.508 (mm2)0.203
Conductor Cross Section 7/0.2 (mm2)0.219
+ ColourBalck
- ColourWhite
Drain WireNo
Insulation MaterialPTFE insulated
Loop Resistance 1/0.2 (Ohms per combined metre)19.3
Loop Resistance 1/0.315 (Ohms per combined metre)7.8
Loop Resistance 1/0.508 (Ohms per combined metre)3.0
Loop Resistance 7/0.2 (Ohms per combined metre)2.7
Max. Temperature+260°C
Min. Temperature-75°C
+ ConductorIron
- ConductorConstantan
ScreenNo
Standards MetColour code (cores & jacket) to IEC-584-3
Thermocouple TypeJ
ToleranceClass 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.




Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
