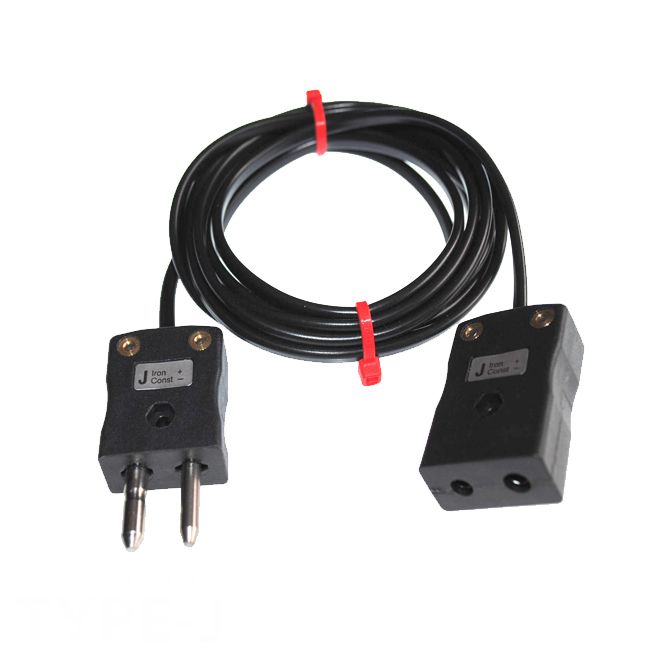

Type J PVC Extension Leads with Standard Plug & Socket (IEC)

Change Currency

SKU
XE-7015
£18.05 £15.04
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Specifications

  • Cable Construction: Single pair 7/0.2
  • PVC insulated cable / wire
  • Laid flat, side by side & PVC sheathed
  • Tolerance class 2
  • Insulation rating -10 to 105°C
  • IEC colour coded

Standard Connectors

  • Standard connector with solid, round plug pins
  • Standard socket with thermocouple contacts
  • Suitable for industrial applications
  • Contacts are polarised to prevent incorrect connection
  • Max temperature 220°C
  • IEC colour coded

General DescriptionGood general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length2M, 5M, 10M, 15M
Cable TypeFlat Pair Construction
Connector TypeThermocouple Plug & Socket
Connector SizeStandard
Core / Strands7/0.2mm
Conductor Cross Section 7/0.2 (mm2)0.219
Outer ColourBlack
Drain WireNo
Insulation MaterialPVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre)4.5
Max. Temperature105°C
Min. Temperature-10°C
+ ConductorIron
- ConductorConstantan
ScreenNo
Standards MetColour code (cores & jacket) to IEC-584-3
Thermocouple TypeJ
ToleranceClass 2

Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
