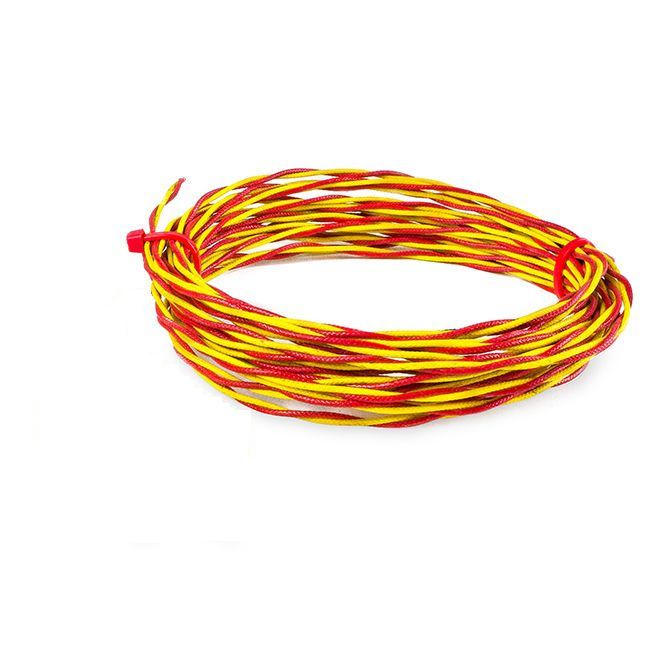

Type K 1/0.711 High Temperature Glassfibre Twin Twisted Fibreglass Thermocouple Cable / Wire (ANSI)
Change Currency
SKU
XE-2812-100
£389.64
£324.70
- Buy 2+ for £258.68 £215.57 each
Price is for 100M length
Specifications
| Length | 100m |
|---|---|
| General Description | Cores Twisted Together, 1/0.711mm Conductor Wire Size |
| Cable Length | 100 metres |
| Cable Type | Fibreglass insulated twisted pair - High temperature |
| Core / Strands | 2 |
| Conductor Cross Section (mm2) | 0.397 |
| Outer Colour | n/a |
| + Colour | Yellow |
| - Colour | Red |
| Insulation Material | Fibreglass - High Temperature |
| Loop Resistance (Ohms per combined metre) | 2.5 |
| Max. Temperature | +700°C |
| Min. Temperature | 0°C |
| Number of Wires | 3 |
| Overall Jacket Insulation | No |
| Overbraiding | No |
| Screen | No |
| Standards Met | ANSI MC96.1 / wire tolerance: IEC 60584:1 |
| Thermocouple Type | K (Nickel Chromium/Nickel Aluminium) |
| Tolerance | Class 1 |
