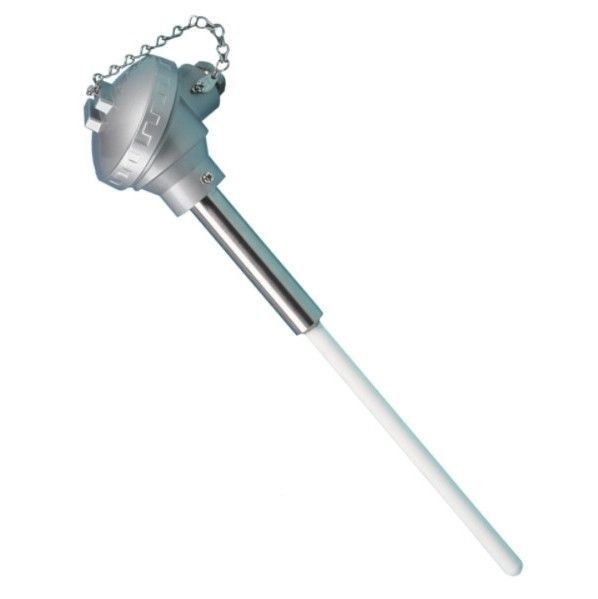

Ceramic Kiln Thermocouple For High Temperature (1400°C) with Aluminous Porcelain sheath - Type K - 450mm length

Change Currency

SKU
XE-6951-001
£148.87 £124.06
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Ceramic Kiln Thermocouples For High Temperature. The 100 mm long stainless steel support tube attaches the ceramic sheath to the industrial head and is included in the overall sheath length.

Specifications



General Description Ceramic thermocouples for furnaces, kilns and other high temperature applications
Sensor Type Made with rugged 20 gauge (0.8mm dia) thermocouple wire for long-term performance
Thermocouple Type Type K with Aluminous Porcelain sheaths, rated to 1400°C
Sheath Material 12 mm diameter ceramic sheath
Max. Temperature +1400°C
IP Rating IP67 rated industrial protection head with cable entry and screw terminal block
Length 450mm
Support Tube 21 mm O.D. support tube, 100 mm long
