Type K PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC) - 1/0.315mm Strand
Change Currency
SKU
XE-2513
£14.60
£12.17

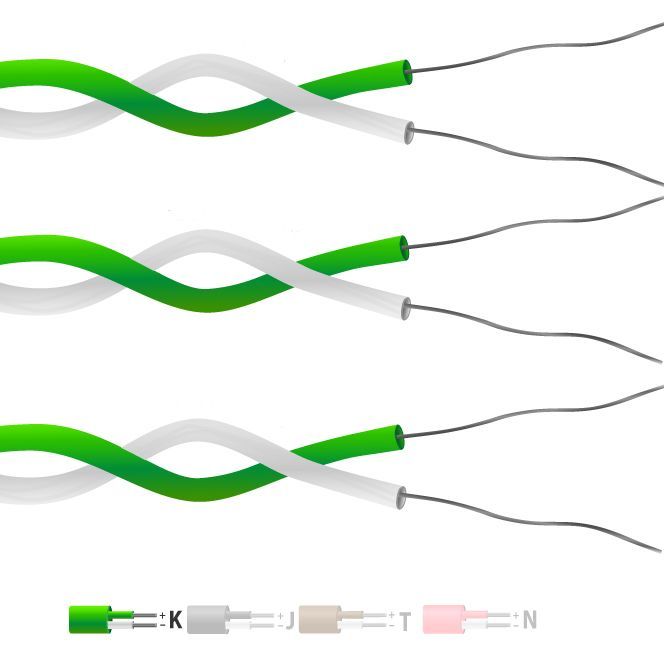

Type K PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)
PTFE insulated twin twisted pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.
Specifications
| General Description | Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m, 200m |
| Cable Type | Twin twisted pair for extending or making simple thermocouples |
| Core / Strands | 1/0.315mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PTFE insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Max. Temperature | 260°C |
| Min. Temperature | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | K |
| Tolerance | Class 1 |
