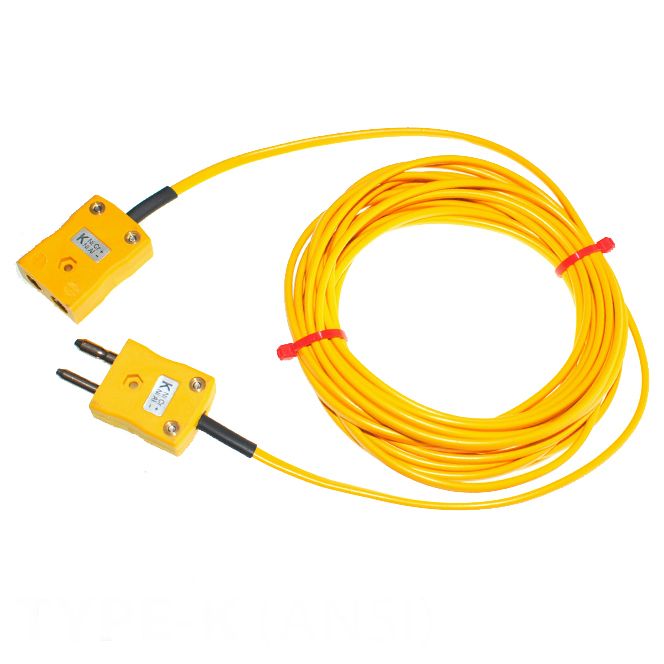

Type K PVC Extension Leads with Standard Plug & Socket (ANSI)

Type K PVC Extension Leads with Standard Plug & Socket  (ANSI)

Details

ANSI coloured PVC thermocouple extension leads with standard connectors. The following lengths of cable are currently available: 2 metres and 5 metres. We offer these in thermocouple type K.

Cable Description

  • PVC insulated flat pair construction
  • Conductors laid flat PVC insulated with overall PVC sheath
  • All round general purpose cable, both waterproof and very flexible
  • Thermocouple extension types K & J, 2 or 5 Metre lengths available
  • Conductors 7/0.2mm
  • Tolerance Class 2
  • Insulation rating -10°C to 105°C
  • Colour code (cores & jacket) in accordance with ANSI specification

Connector Description

  • Ideal for general purpose use
  • All contacts are polarised to ensure correct connection
  • Colour coded in accordance with ANSI specification
  • Maximum continuous operating temperature 220 deg°C

Cable pics

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 2M, 5M, 10M, 15M
Cable Type Flat Pair Construction
Connector Type Thermocouple Plug & Socket
Connector Size Standard
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Yellow
+ Colour Yellow
- Colour Red
Drain Wire No
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to ANSI MC96.1
Thermocouple Type K
Termination Type Standard Thermocouple Plug and Socket
Tolerance Class 2
GBP EUR USD JPY
Excl. VAT: £23.49 Incl. VAT: £28.19

* Required Fields

Labfacility Part No:
XE-7026
Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
