Type K PVC Insulated Mylar Screened Thermocouple Cable / Wire (ANSI)

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

*** See specifications tab for full details ***

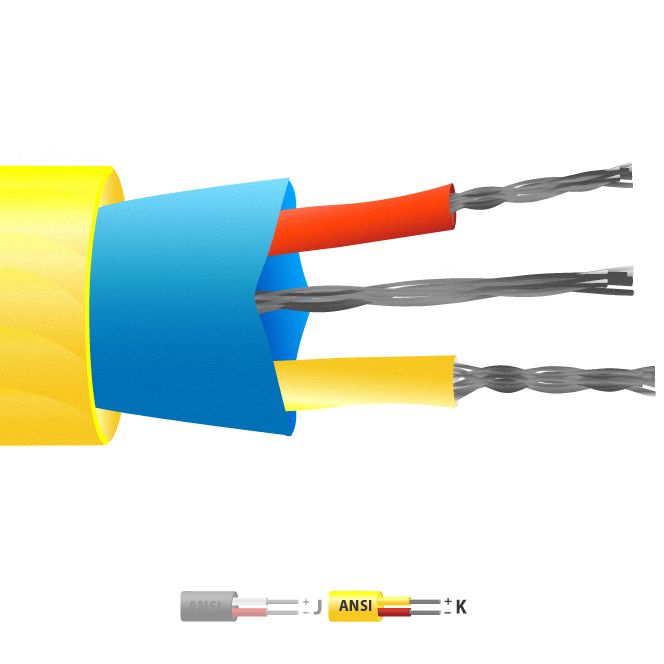

Cable pics

Cable Length 10, 25, 50, 100 & 200m
Cable Type Twisted cores & screened construction for reduced electrical noise
Core / Strands Stranded conductors available, 7/0.2mm
Insulation Material PVC Insulated with a mylar screen
Max. Temperature +105°C
Min. Temperature -10°C
Standards Met Colour code (cores & jacket) to ANSI MC96.1
Thermocouple Type K
Tolerance Class 2
GBP EUR USD JPY
Excl. VAT: £14.52 Incl. VAT: £17.42

* Required Fields

Labfacility Part No:
XE-2811
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
United Kingdom
RoHS Compliant:
