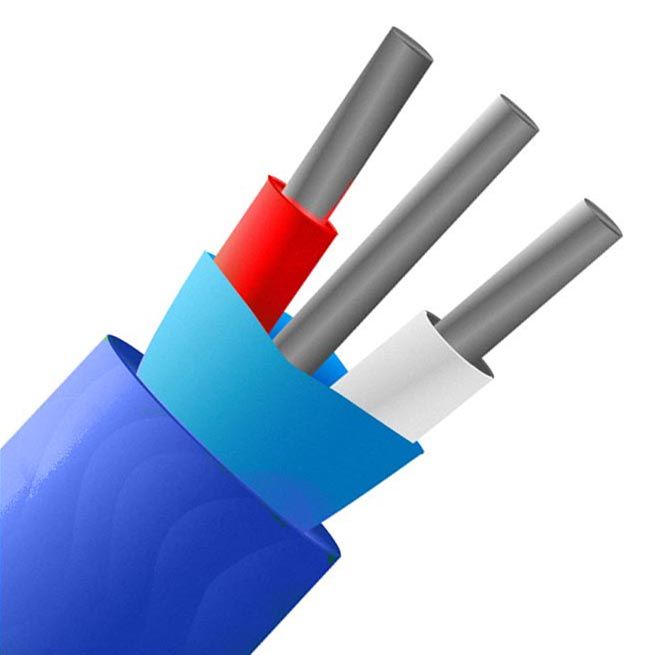

Type K PVC Mylar Screened Thermocouple Cable / Wire (JIS)

Change Currency

SKU
XE-0547
£22.96 £19.13
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 10m, 25m, 50m, 100m, 200m
Cable Type Twisted cores & screened construction for reduced electrical noise
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Blue
+ Colour Red
- Colour White
Drain Wire Yes
Insulation Material PVC Insulated with a mylar screen
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
Screen Yes
Screen Type Mylar
Standards Met JIS (Japanese Industrial Standards)
Thermocouple Type K
